OSG
1050800
10-24 H3 3FL BOTT
Specifications
| Coating/Finish | Bright |
|---|---|
| Overall Length | 2.37" |
| Chamfer | 1.5P - 2P |

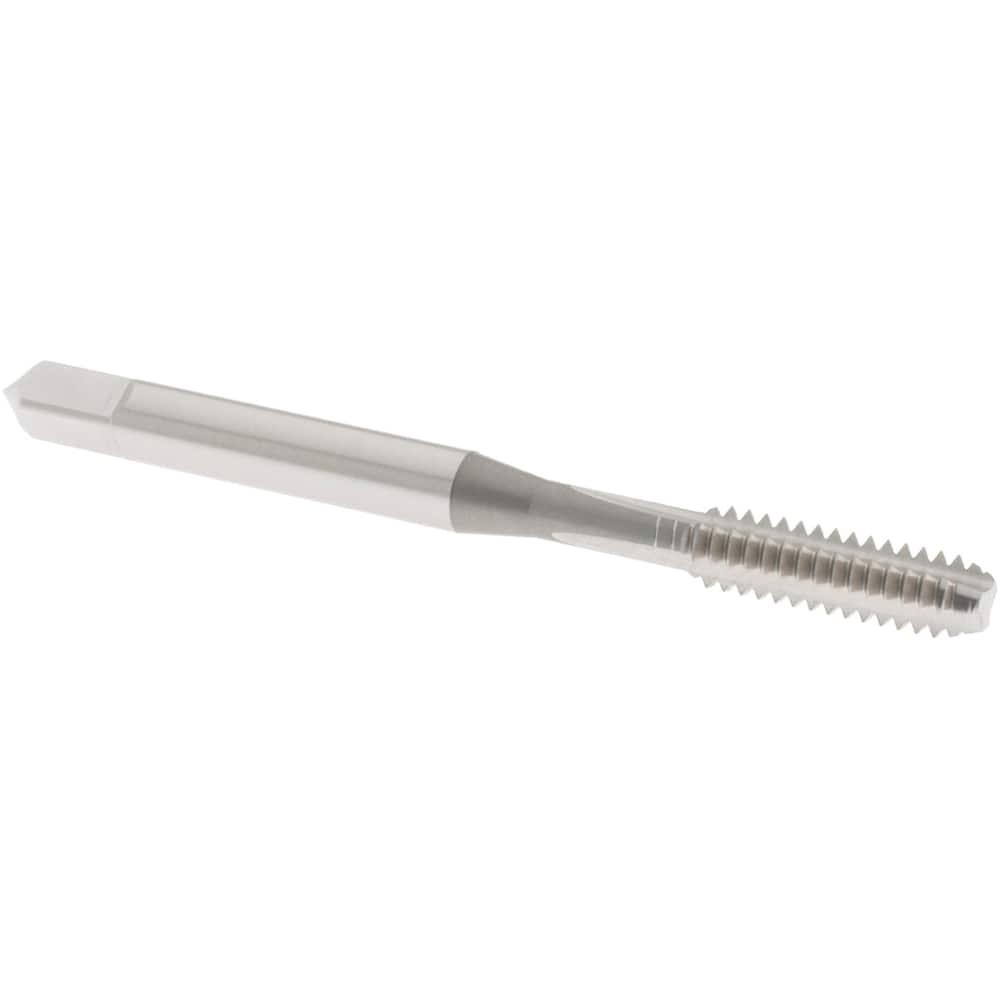

| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.0834 |
| Blind Hole Add | 0.0834 |
| Full Thread | 0.9636 |
| Threads per Inch | 24 |
| Shank Diameter | 0.194" |
| Thread Length | 0.618" |
| Neck Length | 1.047" |
| Thread Type | UNC |
