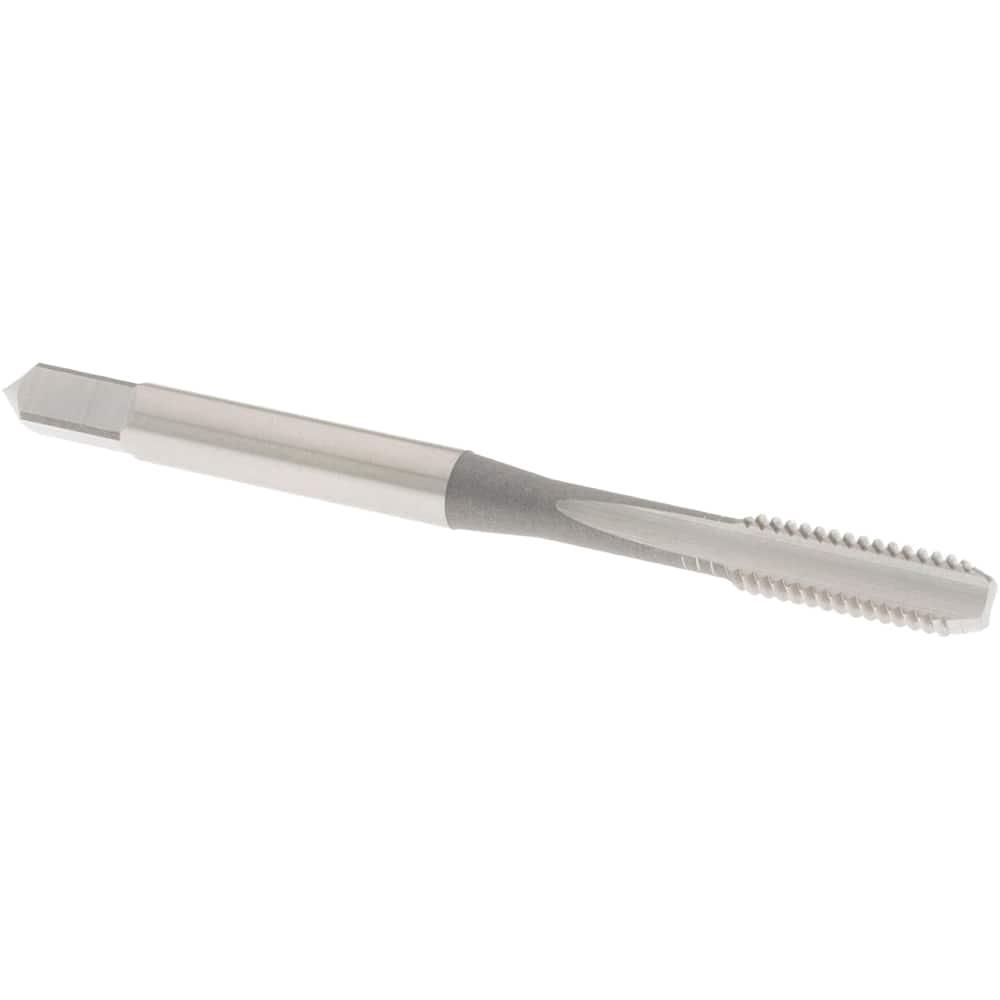

OSG
1073500
8-32 H3 2FL BOTT
Specifications
| Coating/Finish | Bright |
|---|---|
| Overall Length | 2.12" |
| Chamfer | 1.5P - 2P |
| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.0626 |
| Blind Hole Add | 0.0626 |
| Full Thread | 0.9404 |
| Threads per Inch | 32 |
| Shank Diameter | 0.167" |
| Thread Length | 0.539" |
| Neck Length | 1.003" |
| Thread Type | UNC |
