OSG
1121908

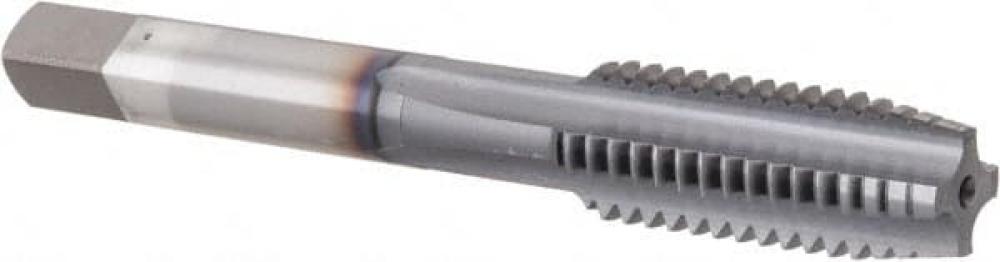

7/16-14 H3 4FL PLUG TiCN
Specifications
| Coating/Finish | TiCN |
|---|---|
| Overall Length | 3.15" |
| Chamfer | 3.5P - 4.5P |
| Short Description | Straight Fluted Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.3213 |
| Blind Hole Add | 0.1428 |
| Full Thread | 1.3667 |
| Threads per Inch | 14 |
| Shank Diameter | 0.322" |
| Thread Length | 1.070" |
| Neck Length | 1.688" |
| Thread Type | UNC |
| Tap Size | 7/16" |
