OSG
1122901

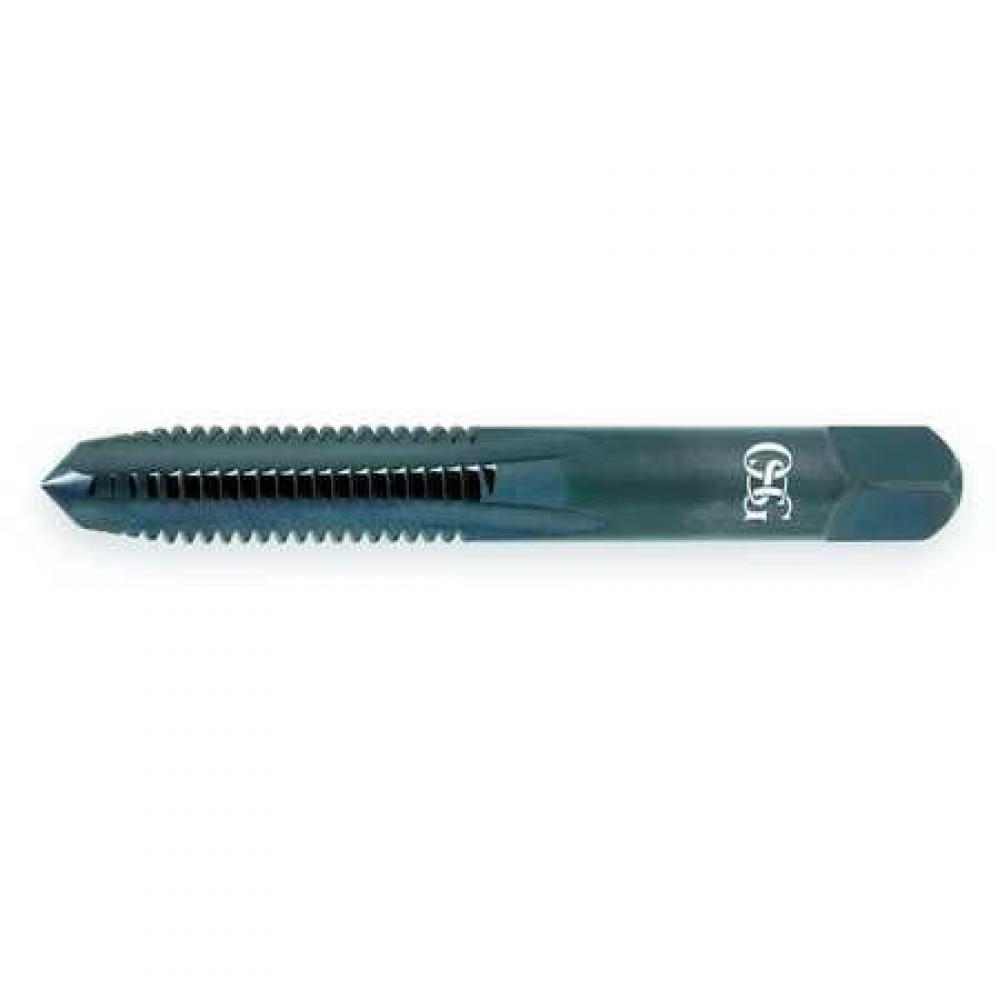

1/2-20 H3 4FL BOTT S/O
Specifications
| Coating/Finish | Steam Oxide |
|---|---|
| Overall Length | 3.37" |
| Chamfer | 1.5P - 2P |
| Short Description | Straight Fluted Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.1 |
| Blind Hole Add | 0.1 |
| Full Thread | 1.711 |
| Threads per Inch | 20 |
| Shank Diameter | 0.367" |
| Thread Length | 1.153" |
| Neck Length | 1.811" |
| Thread Type | UNF |
