OSG
1145800

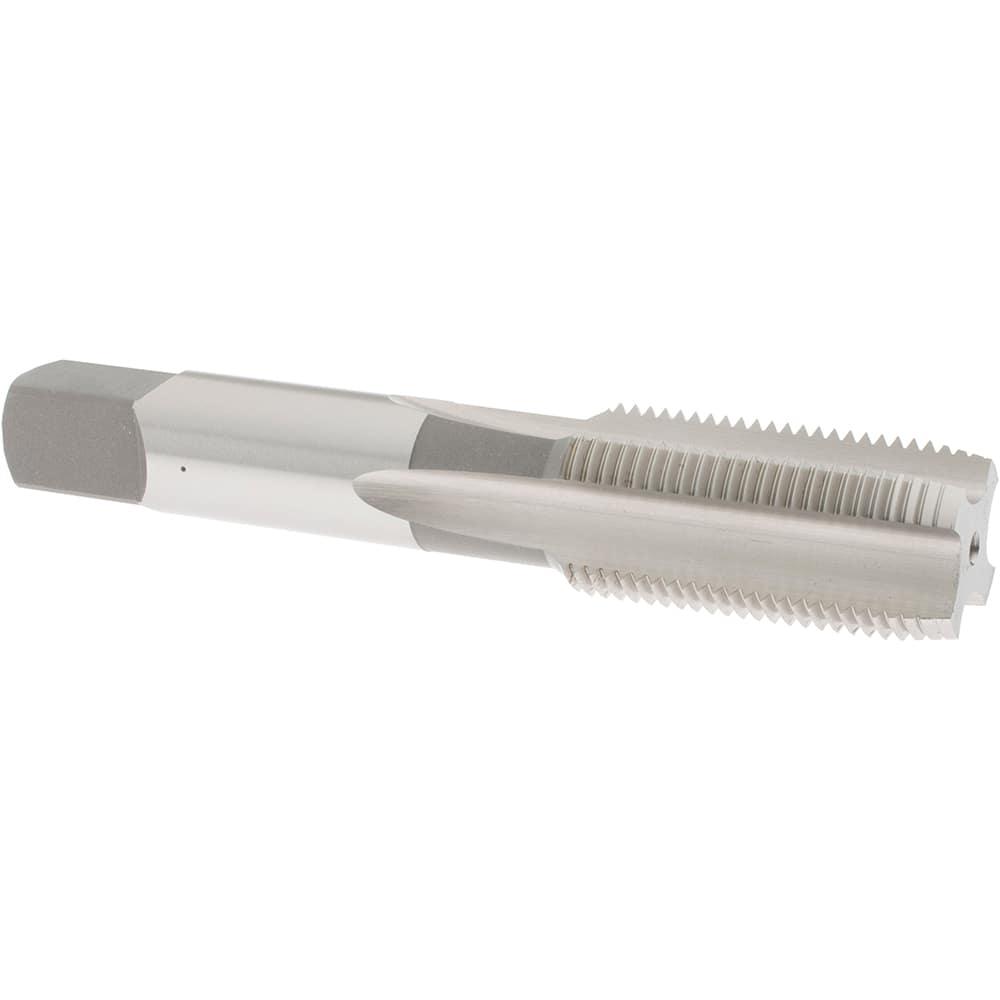

7/8-14 H6 4FL PLUG
Specifications
| Coating/Finish | Bright |
|---|---|
| Overall Length | 4.68" |
| Chamfer | 3.5P - 4.5P |
| Short Description | Straight Fluted Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.3213 |
| Blind Hole Add | 0.1428 |
| Full Thread | 2.1787 |
| Threads per Inch | 14 |
| Shank Diameter | 0.697" |
| Thread Length | 1.665" |
| Neck Length | 2.500" |
| Thread Type | UNF |
| Tap Size | 7/8" |
