OSG
1171405

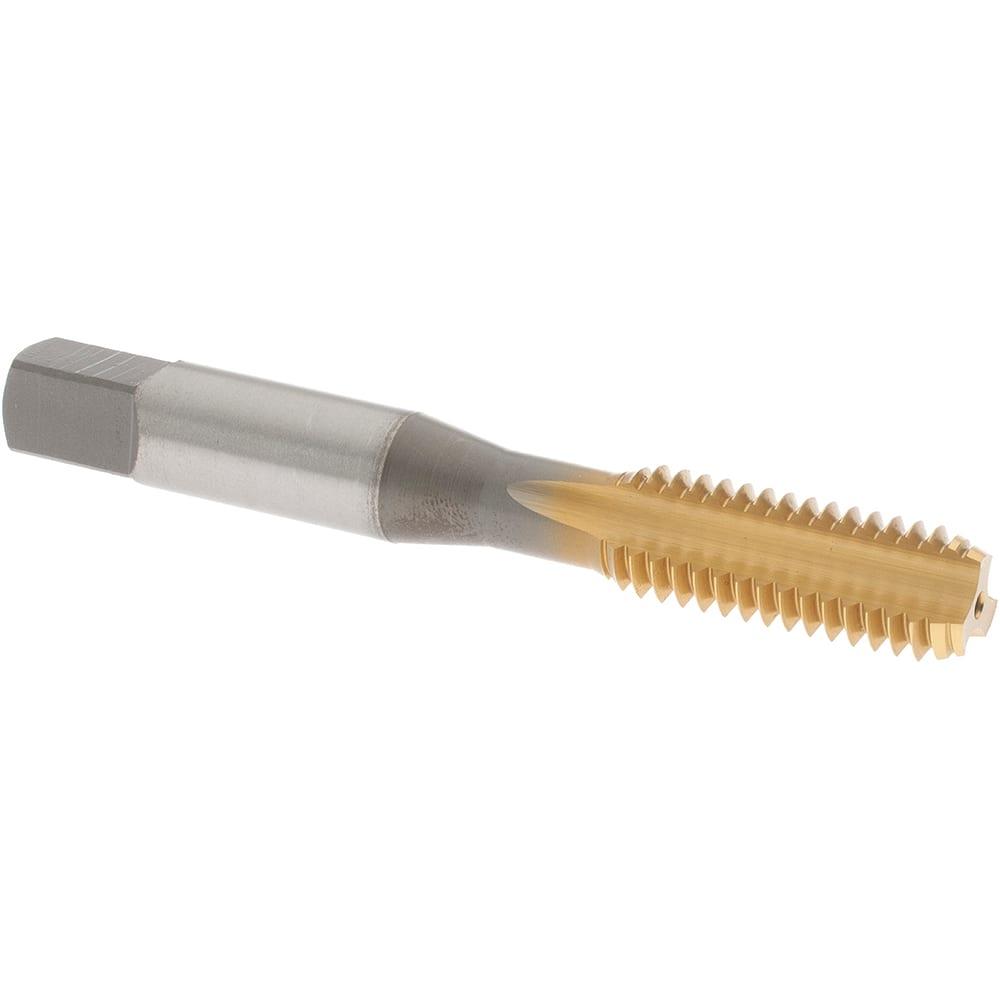

3/8-16 H3 3FL BOTT TiN
Specifications
| Coating/Finish | TiN |
|---|---|
| Overall Length | 2.93" |
| Chamfer | 1.5P - 2P |
| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.125 |
| Blind Hole Add | 0.125 |
| Full Thread | 1.288 |
| Threads per Inch | 16 |
| Shank Diameter | 0.381" |
| Thread Length | 0.937" |
| Neck Length | 1.413" |
| Thread Type | UNC |
| Tap Size | 3/8" |
