OSG
1590300

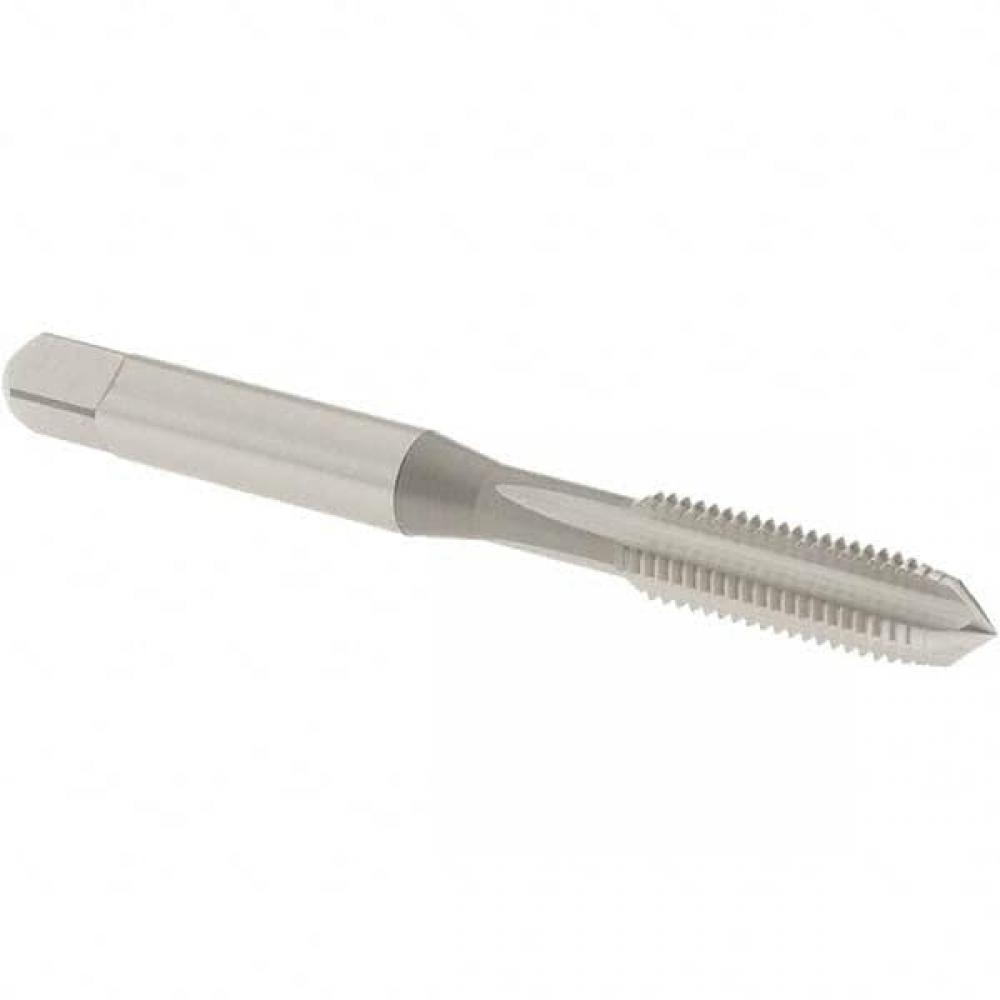

1/4-28 +.005 4FL PLUG
Specifications
| Coating/Finish | Bright |
|---|---|
| Overall Length | 2.50" |
| Chamfer | 3.5P - 4.5P |
| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.1607 |
| Blind Hole Add | 0.0714 |
| Full Thread | 1.0203 |
| Threads per Inch | 28 |
| Shank Diameter | 0.255" |
| Thread Length | 0.748" |
| Neck Length | 1.181" |
| Thread Type | UNF |
