OSG
1600607

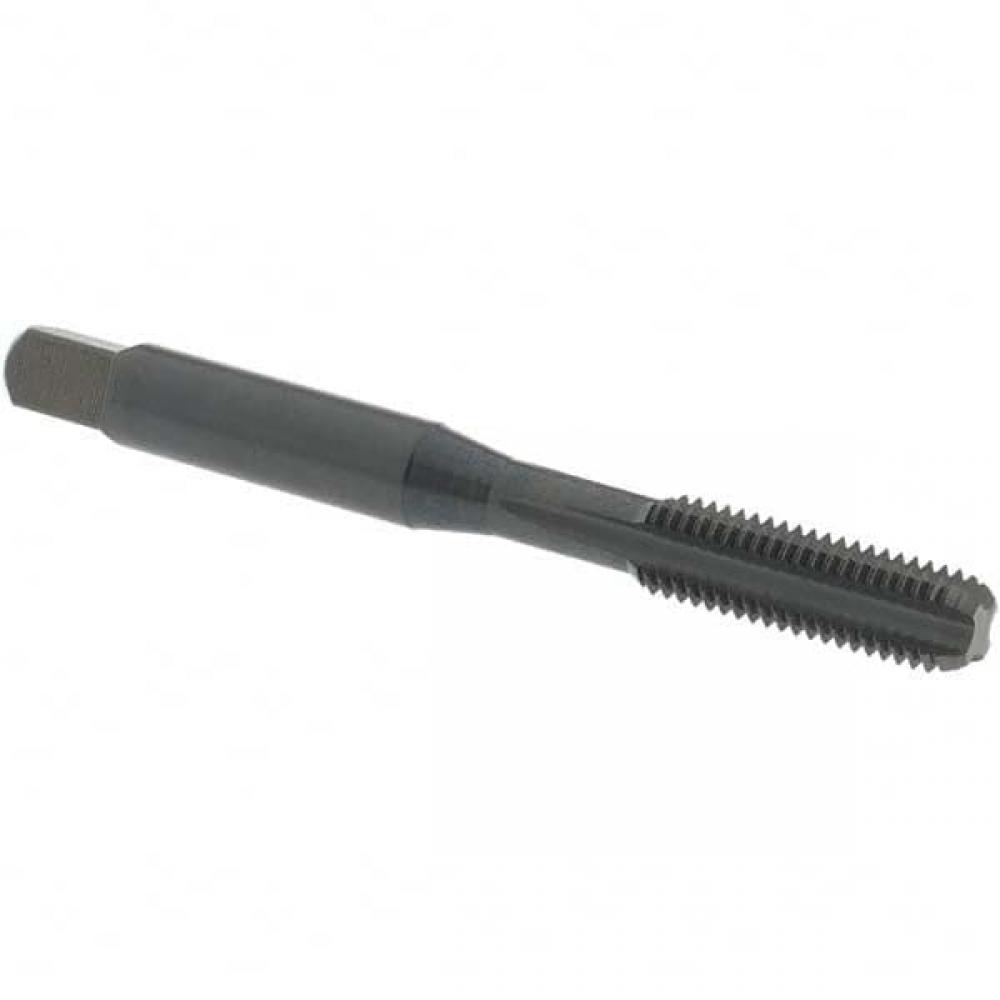

1/4-28 H3 4FL BOTT CI N/O
Specifications
| Coating/Finish | Nitride + Steam Oxide |
|---|---|
| Overall Length | 2.50" |
| Chamfer | 1.5P - 2P |
| Short Description | Straight Fluted Hand Taps for Cast Iron |
| Chamfer (Decimal) | 0.0714 |
| Blind Hole Add | 0.0714 |
| Full Thread | 1.1176 |
| Threads per Inch | 28 |
| Shank Diameter | 0.255" |
| Thread Length | 0.756" |
| Neck Length | 1.189" |
| Thread Type | UNF |
