OSG
1608507

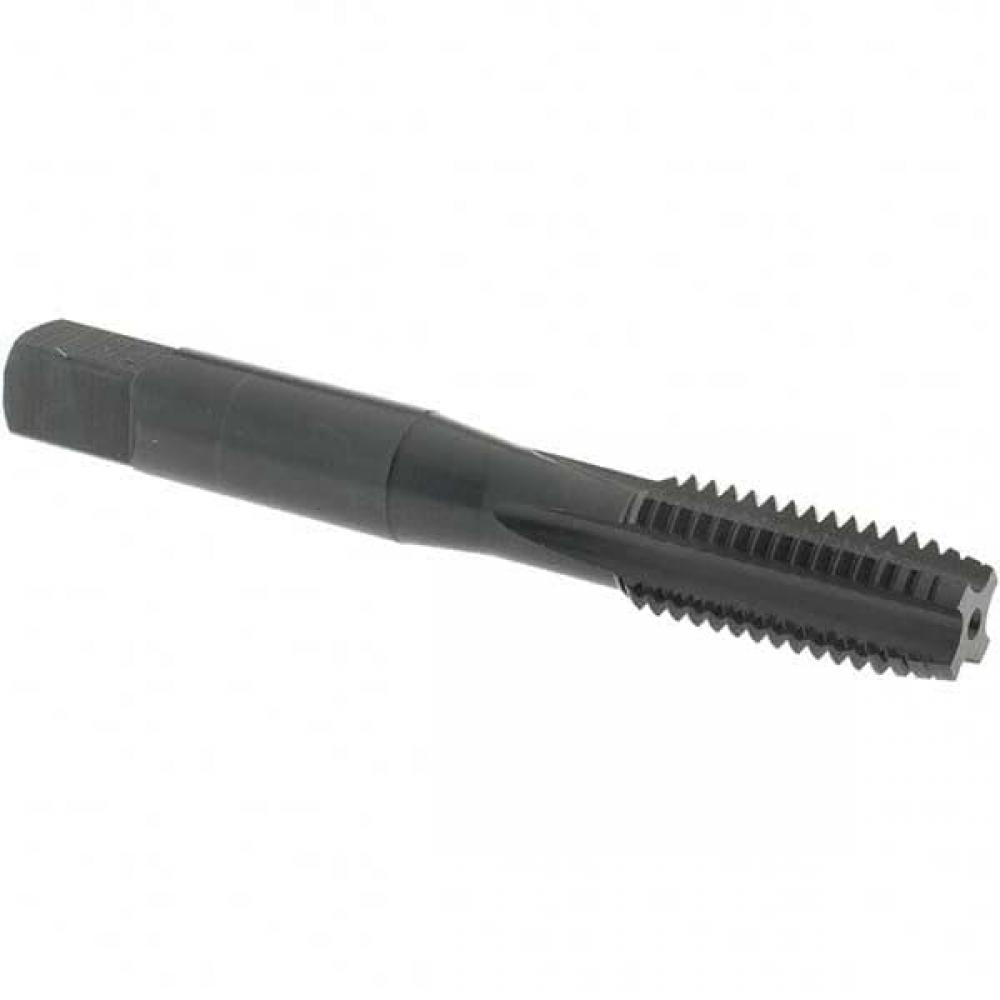

M10 X 1.5 D6 4FL PLUG CI N/O
Specifications
| Coating/Finish | Nitride + Steam Oxide |
|---|---|
| Overall Length | 74mm |
| Chamfer | 3.5P - 4.5P |
| Short Description | Straight Flute Hand Taps for Cast Iron |
| Chamfer (Decimal) | 0.266 |
| Blind Hole Add | 0.1182 |
| Full Thread | 1.112 |
| Shank Diameter | 9.67mm |
| Thread Length | 22mm |
| Neck Length | 35mm |
