OSG
1680500

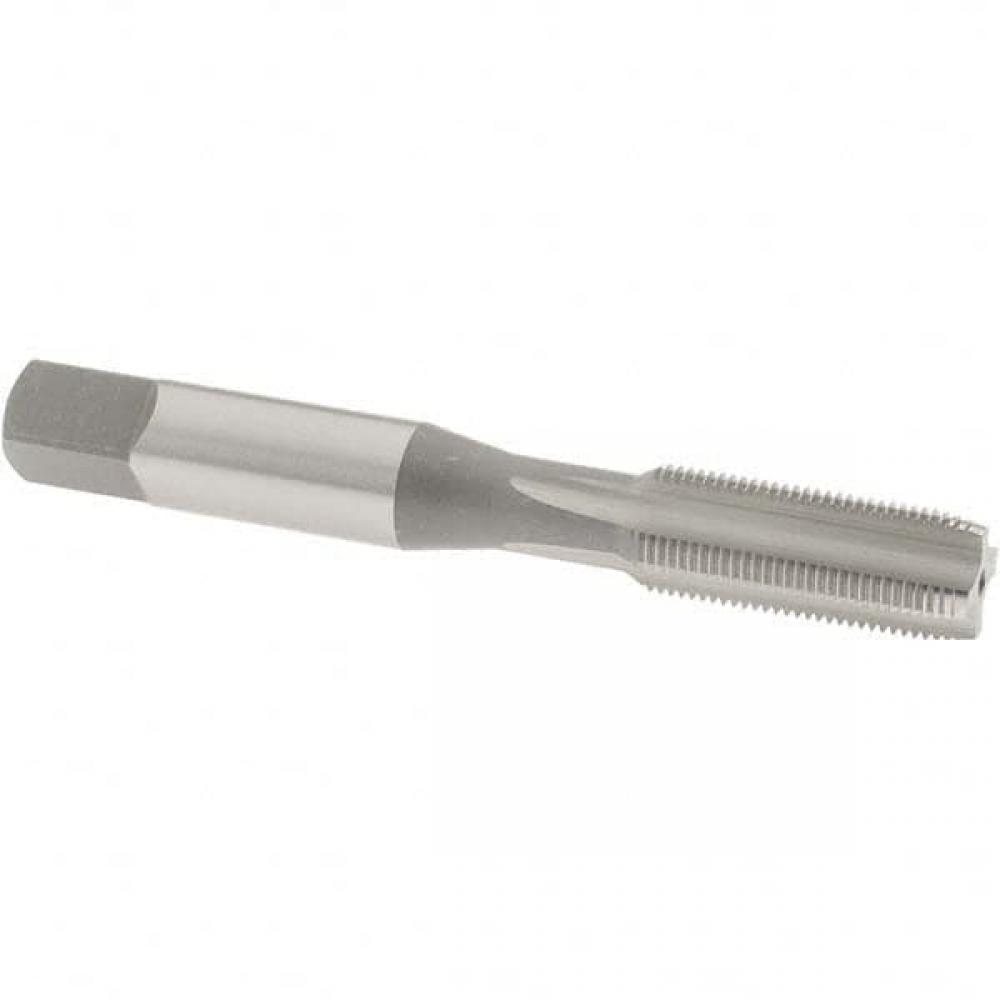

3/8-32 NEF H3 4FL PLUG
Specifications
| Coating/Finish | Bright |
|---|---|
| Overall Length | 2.93" |
| Chamfer | 3.5P - 4.5P |
| Short Description | Straight Flute Hand Taps for Ferrous and Non-ferrous Materials |
| Chamfer (Decimal) | 0.1409 |
| Blind Hole Add | 0.0626 |
| Full Thread | 1.2721 |
| Threads per Inch | 32 |
| Shank Diameter | 0.381" |
| Thread Length | 0.937" |
| Neck Length | 1.413" |
| Thread Type | UNEF |
| Tap Size | 3/8" |
