OSG
3146703

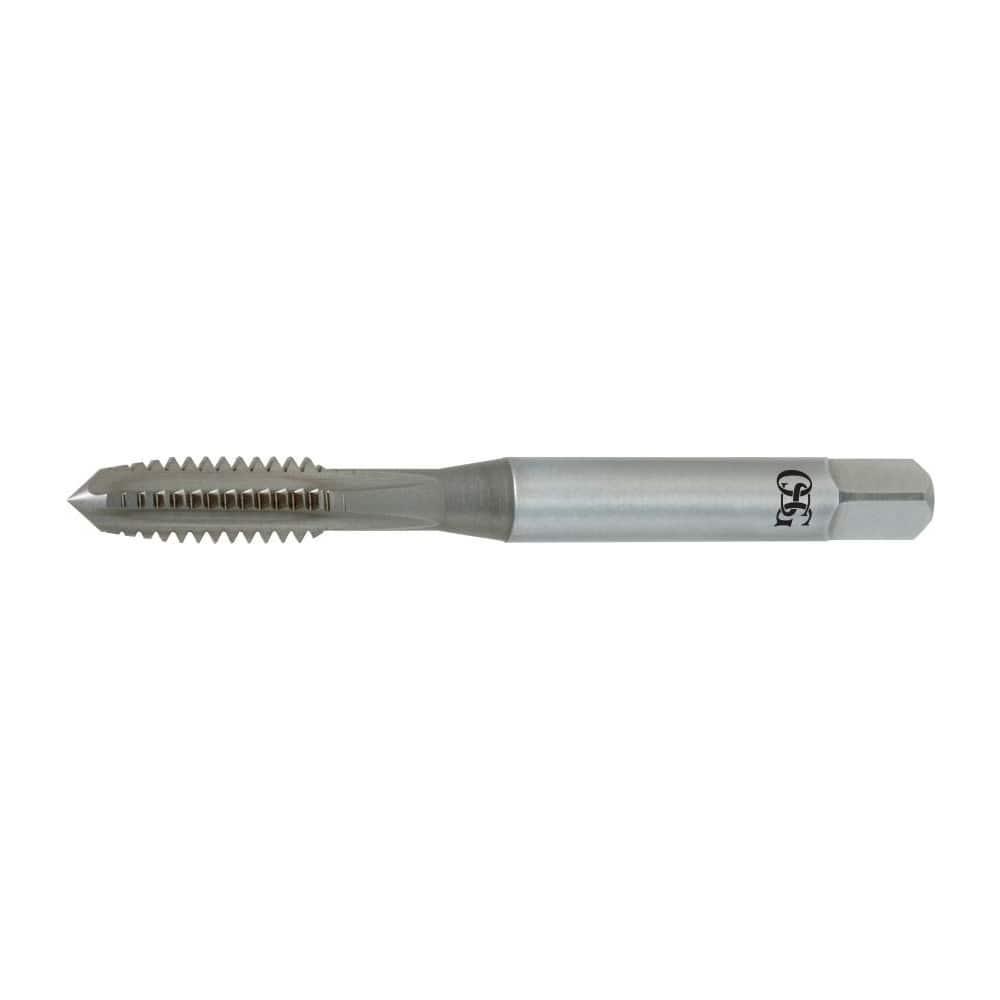

10-32 GH7 4FL BOTT PLASTIC
Specifications
| Coating/Finish | Nitride |
|---|---|
| Overall Length | 2.37" |
| Chamfer | 1.5P - 2P |
| Short Description | Straight Flute Hand Taps for Plastics |
| Chamfer (Decimal) | 0.0626 |
| Blind Hole Add | 0.0626 |
| Full Thread | 0.8034 |
| Threads per Inch | 32 |
| Shank Diameter | 0.194" |
| Thread Length | 0.492" |
| Neck Length | 0.866" |
| Thread Type | UNS |
