OSG
495-2502

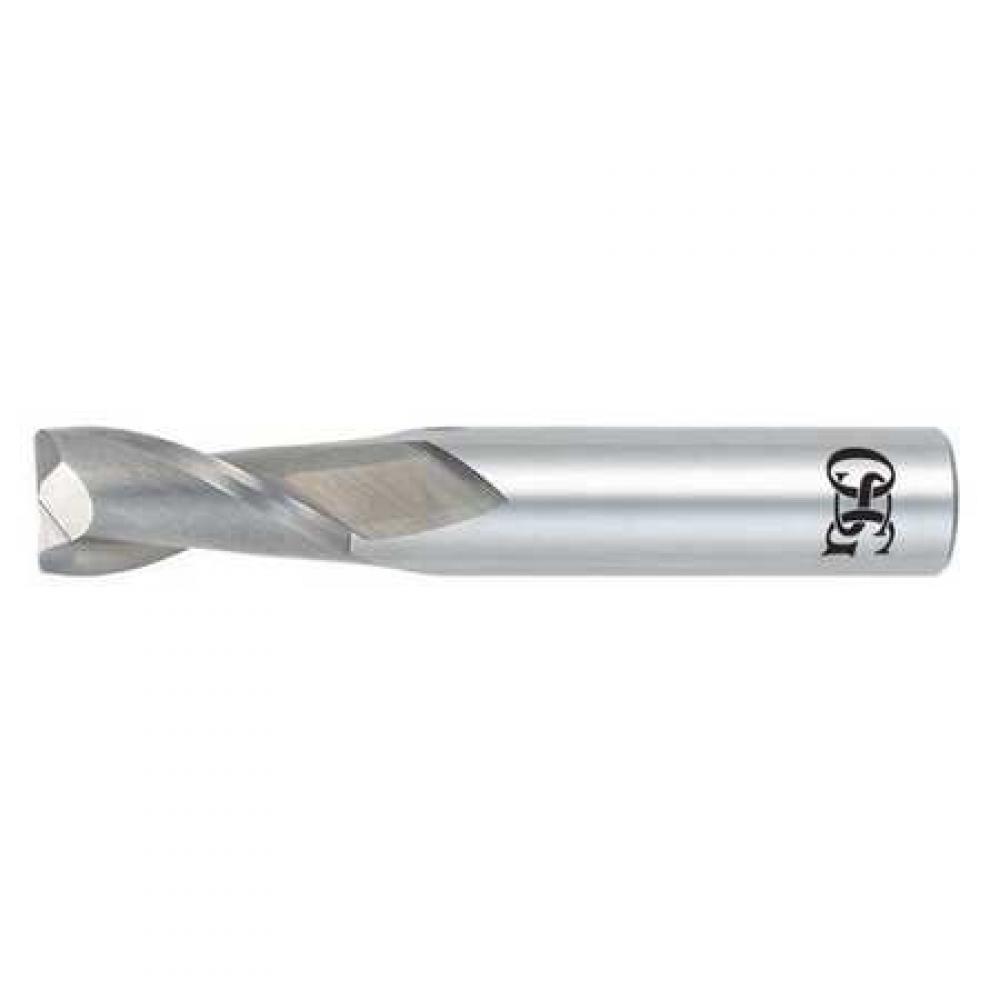

CARBIDE 1/4 X 1/4 X R0.020" 2FL
Specifications
| Number Of Flutes | 2 |
|---|---|
| Coating/Finish | Bright |
| Diameter (Inch) | 0.25 |
| Length Type | Regular |
| Short Description | Standard Carbide End Mills for General Milling Applications |
| Shank Diameter | 1/4" |
| Overall Length | 2-1/2" |
| Length of Cut | 3/4" |
| Diameter (Fractional) | 1/4" |
| End Mill Total Depth | 0.75 |
| End Type | Center Cutting |
| Diameter Tolerance | +0 / -0.002" |
| End Style | Corner Radius |
| Shank Style | Straight |
| Corner Radius | 0.020" |
| Length Style | Regular |
