OSG
660031217

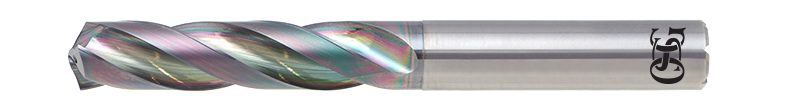

A BRAND CARBIDE DRILL
Specifications
| Diameter (Metric) | 7.93 |
|---|---|
| Overall Length (Metric) | 94 |
| Shank Size (Inch) | 5/16 |
| Material | Carbide |
| Diameter (Inch) | 5/16 |
| Number Of Flutes | 3 |
| Short Description | 5/16" A BRAND ADO-TRS-3D |
| Point Angle | 140 degrees |
| Diameter Tolerance | +0 / -0.0009" |
| Diameter Tolerance (Decimal) | +0 / -0.0009 |
| Diameter | 5/16 Inch |
| Drill Point Angle | 140 Degree |
| Shank Diameter (Fractional) | 5/16 |
| Base Item Number | A BRAND CARBIDE DRILL |
| Depth-to-Diameter Ratio | 3xD |
| Drill Hole Depth (Decimal) | 1.57 |
| Drill Hole Depth (Metric) | 40 |
| Product Type | Industrial Supplies |
| Thinning | R Thinning |
| Unit of Measure | Fractional |
| Flute Length (mm) | 4 cm |
| Shank Diameter (Inch) | 5/16 |
| Diameter (Fractional) | 5/16 |
| L x D Ratio | 3xD |
| Length Style | Stub |
