OSG
71400916

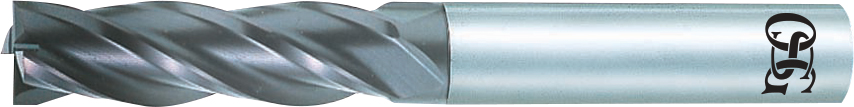

10.0mm EXO-DIA STUB
Specifications
| Type | High Performance |
|---|---|
| Shank Type | Shrink Fit |
| Length Of Cut (Metric) | 25 |
| Overall Length (Metric) | 60 |
| Number Of Flutes | 4 |
| Material | Carbide |
| Coating/Finish | Diamond |
| Diameter (Metric) | 10 |
| Diameter (Inch) | 0.39 |
| Length Type | Regular |
| Short Description | High Performance Diamond Coated End Mills for Graphite & Non-Ferrous Materials |
| Shank Diameter | 10.00mm |
| Shank Diameter (Metric) | 10 |
| Overall Length | 60 mm |
| Diameter | 10 mm |
| Primary Workpiece Material | Graphite & Non-Ferrous Material |
| Length of Cut | 25 mm |
| Diameter Tolerance (Metric) | +0 / -0.02 |
| End Mill Total Depth | 0.99 |
| End Type | Center Cutting |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Diameter Tolerance | +0 / -0.02mm |
| End Style | Square |
| Shank Style | Shrink Fit |
| Length Style | Regular |
