Piher
60040

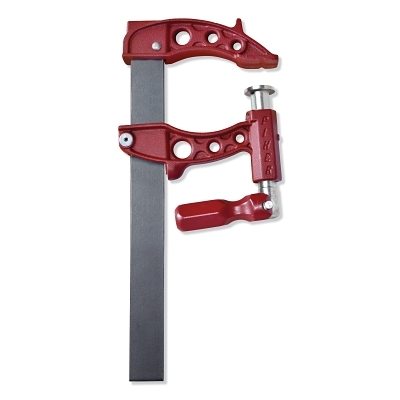

Piher Maxipress F Piston Clamps
Specifications
| Long Description | Rolled spring steel bar provides maximum pressure held throughout the whole job|Fixed jaw surface is grooved to achieve maximum grip|Spring activated back brake keeps moving jaw firmly in position|Covered double-threaded screw doubles both pressure and speed with a greasing hole for optimum lubrication|Dismountable, interchangeable easy grip handle |
|---|---|
| Short Description | Maxipress F Piston Clamp, 16 in Opening, 5 in Throat Depth, 9,000 N |
| Nominal Throat Depth | 5 in |
| Opening Size Max | 16 in |
| ORS Nasco SKU Number | 848-60040 |
| Classification | Bar Clamps & Spreaders |
| Body Material | Nodular Cast Iron Jaws; Heat-Rolled Steel Bar |
| Prop 65 Warning Label | N |
| Handle Type | Dismountable; Interchangeable; Nylon and Fiberglass |
| Spindle Diameter | 1.1 in |
| Bar Thickness | .3 in |
| Bar Width | 1.4 in |
| Load Capacity Nominal | 9,000 N |
| Prop 65 Warning Required | N |
| Country of Origin | ES |
