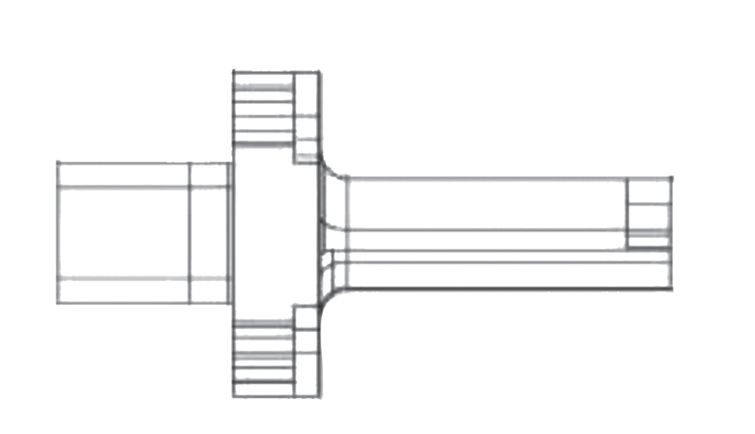

MH 50 Square Series Insert Holder
Specifications
| Centering Plate | CP-1 |
|---|---|
| L1 (mm) | 30 |
| L2 (mm) | 58 |
| l3 (mm) | 13 |
| L4 (mm) | 20 |
| L5 (mm) | 43 |
| L6 (mm) | 35 |
| Long Description | CNC lathes, MH square, insert holder, keyway seating compatible, customizable, MH 50 series |
| Minimum Hole (mm) | 8 |
| Mounting Screw | MS-1 |
| Short Description | duMONT CNC | MH 50 Square Series Insert Holder | 8/10-50 |
| Weight (g) | 0.15 |
