Pilot Precision
10020*

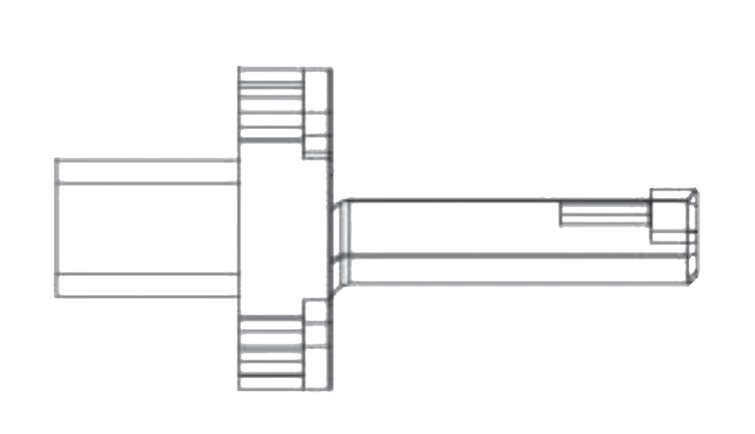

MH 35 Hexagon Series Insert Holder
Specifications
| Centering Plate | CP-2 |
|---|---|
| D1 (mm) | 15 |
| L1 (mm) | 46 |
| L2 (mm) | 73 |
| l3 (mm) | 13 |
| L4 (mm) | 20 |
| L5 (mm) | 43 |
| L6 (mm) | 35 |
| Long Description | CNC lathes, MH hexagon, insert holder, keyway seating compatible, customizable, MH 35 series |
| Minimum Hole (mm) | 16 |
| Mounting Screw | MS-2 |
| Short Description | duMONT CNC | MH 35 Hexagon Series Insert Holder | 17/28-35 |
| Weight (g) | 0.17 |
