Pilot Precision
10037*

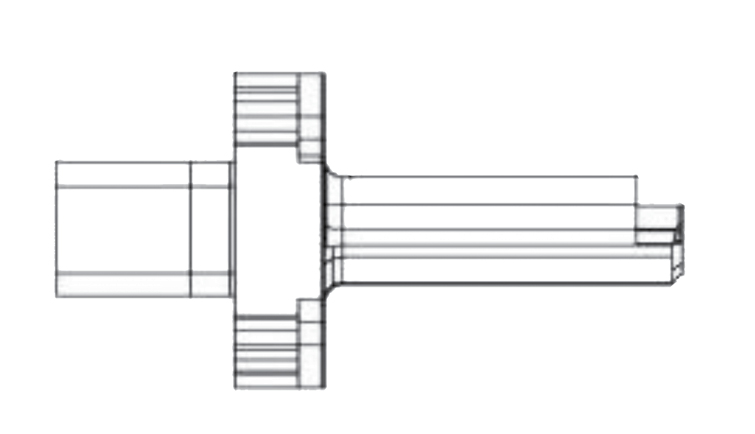

MH-Spline 35 Series Insert Holder
Specifications
| Centering Plate | CP-2 |
|---|---|
| D1 (mm) | 16 |
| L1 (mm) | 46 |
| L2 (mm) | 79 |
| l3 (mm) | 13 |
| L4 (mm) | 20 |
| L5 (mm) | 43 |
| L6 (mm) | 35 |
| Long Description | CNC lathes, MH spline, insert holder, keyway seating compatible, customizable, MH 35 series |
| Minimum Hole (mm) | 17 |
| Mounting Screw | MS-2 |
| Short Description | duMONT CNC | MH-Spline 35 Series Insert Holder | 06-35 |
| Weight (g) | 0.21 |
