Pilot Precision
99175

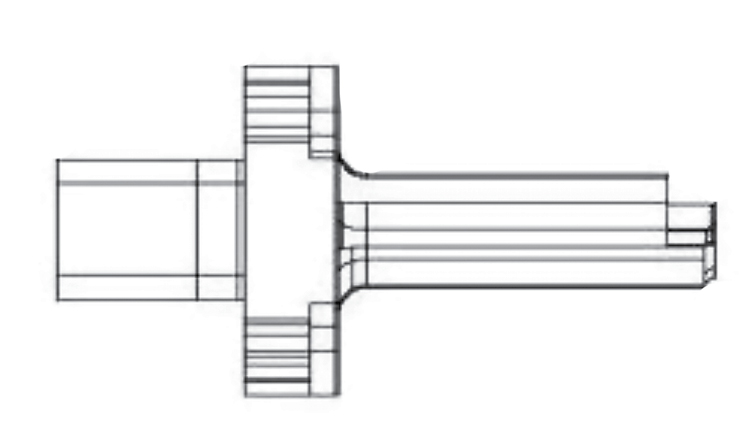

MH 50 Slotting Series Insert Holder
Specifications
| Centering Plate | CP-3 |
|---|---|
| D1 (mm) | 22 |
| L1 (mm) | 56 |
| L2 (mm) | 89 |
| l3 (mm) | 13 |
| L4 (mm) | 20 |
| L5 (mm) | 43 |
| L6 (mm) | 35 |
| Long Description | CNC lathes, MH slotting, insert holder, keyway seating compatible, customizable, MH 50 series |
| Minimum Bore Diameter (Inch) | 1.102/1.181 |
| Minimum Bore Diameter (Metric) | 28/30 |
| Minimum Hole (mm) | 24 |
| Mounting Screw | MS-3 |
| Short Description | duMONT CNC | MH 50 Slotting Series Insert Holder | 10/12-50 |
| Weight (g) | 0.235 |
