Pilot Precision
99209C*
Inserts (inch) Tolerances
Specifications
| L3 (inch) | 0.3543 |
|---|---|
| L4 (inch) | 0.2362 |
| L5 (inch) | 0.5314 |
| L6 (inch) | 0.1360 |

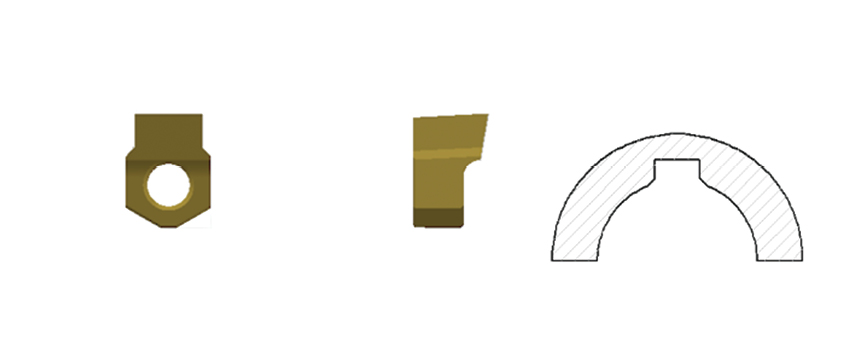

| Long Description | Broaching insert, slotting insert, sintered steel alloy, 13% cobalt content, 72 HRC hardness, TiN coated, Chamfer Feature, Tapered Bore keyway, Square keyway, hexagon keyway, involute internal gears, customizable corner radius |
| Sharpen Stem | SS-2 |
| Short Description | duMONT CNC | Inserts (inch) - Tolerances | 1/4 | 45° Chamfer |
