Pilot Precision
99494C*
Inserts (mm) Tolerances
Specifications
| l3 (mm) | 18 |
|---|---|
| L4 (mm) | 10 |
| L5 (mm) | 30 |
| L6 (mm) | 7.02 |

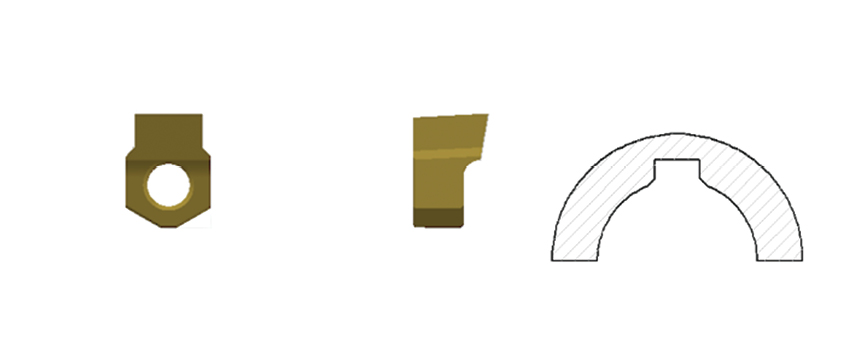

| Long Description | Broaching insert, slotting insert, sintered steel alloy, 13% cobalt content, 72 HRC hardness, TiN coated, Chamfer Feature, Tapered Bore keyway, Square keyway, hexagon keyway, involute internal gears, customizable corner radius |
| Sharpen Stem | SS-5 |
| Short Description | duMONT CNC | Inserts (mm) - Tolerances | 25 | 45° Chamfer |
| Tool Holder Size | 18/26 |
