Pilot Precision
99629

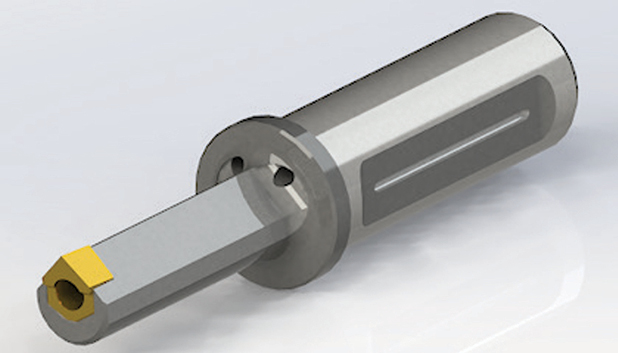

Tools for Square (mm)
Specifications
| Centering Plate | CP-3 |
|---|---|
| D1 (mm) | 25 |
| D2 (mm) | 18.5 |
| D3 (mm) | 30 |
| L1 (mm) | 86.0 |
| L2 (mm) | 185.0 |
| l3 (mm) | 9.0 |
| L4 (mm) | 90.0 |
| Long Description | absolute concentricity, square size variety, tools for square, mm |
| Minimum Hole (mm) | 19 |
| Mounting Screw | MS-3 |
| Short Description | duMONT CNC | Tools for Square (mm) | 19/27-25 |
| Weight (g) | 824 |
