Pilot Precision
99632

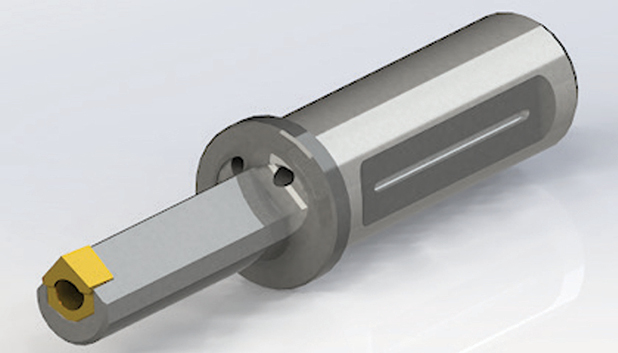

Tools for Square (mm)
Specifications
| Centering Plate | CP-4 |
|---|---|
| D1 (mm) | 32 |
| D2 (mm) | 25 |
| D3 (mm) | 38 |
| L1 (mm) | 100.0 |
| L2 (mm) | 209.0 |
| l3 (mm) | 9.0 |
| L4 (mm) | 100.0 |
| Long Description | absolute concentricity, square size variety, tools for square, mm |
| Minimum Hole (mm) | 27 |
| Mounting Screw | MS-3 |
| Short Description | duMONT CNC | Tools for Square (mm) | 27/37-32 |
| Weight (g) | 1,490 |
