Pilot Precision
99802*

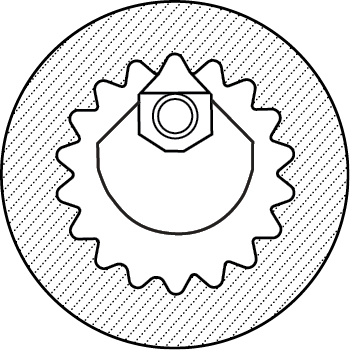

Tools for Splined Profiles (mm)
Specifications
| Centering Plate | CP-0 |
|---|---|
| D1 (mm) | 32 |
| D2 (mm) | 6.5 |
| D3 (mm) | 37 |
| L1 (mm) | 25.0 |
| L2 (mm) | 134 |
| l3 (mm) | 9 |
| L4 (mm) | 100 |
| Long Description | splined profiles, SP tool line, customizable, mm |
| Minimum Hole (mm) | 7 |
| Mounting Screw | MS-1 |
| Short Description | duMONT CNC | Tools for Splined Profiles (mm) | 02-32 |
| Weight (g) | 600 |
