Pilot Precision
99814*

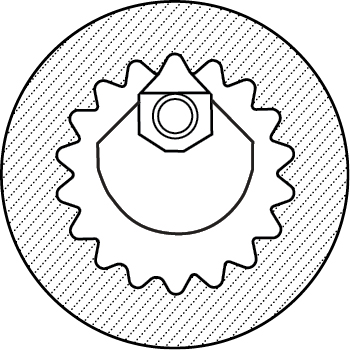

Tools for Splined Profiles (mm)
Specifications
| Centering Plate | CP-3 |
|---|---|
| D1 (mm) | 32 |
| D2 (mm) | 25 |
| D3 (mm) | 37 |
| L1 (mm) | 86.0 |
| L2 (mm) | 195.0 |
| l3 (mm) | 9 |
| L4 (mm) | 100 |
| Long Description | splined profiles, SP tool line, customizable, mm |
| Minimum Hole (mm) | 28 |
| Mounting Screw | MS-3 |
| Short Description | duMONT CNC | Tools for Splined Profiles (mm) | 10-32 |
| Weight (g) | 935 |
