Pilot Precision
99817*

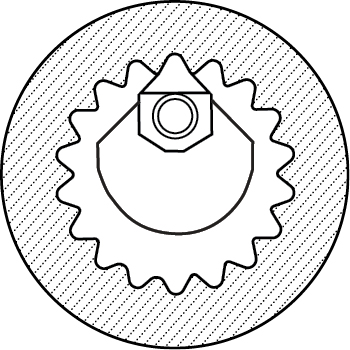

Tools for Splined Profiles (mm)
Specifications
| Centering Plate | CP-4 |
|---|---|
| D1 (mm) | 25 |
| D2 (mm) | 35 |
| D3 (mm) | 37 |
| L1 (mm) | 126.0 |
| L2 (mm) | 221.0 |
| l3 (mm) | 9 |
| L4 (mm) | 90 |
| Long Description | splined profiles, SP tool line, customizable, mm |
| Minimum Hole (mm) | 38 |
| Mounting Screw | MS-3 |
| Short Description | duMONT CNC | Tools for Splined Profiles (mm) | 14/16-25 |
| Weight (g) | 1,211 |
