PROTO
J4709TM

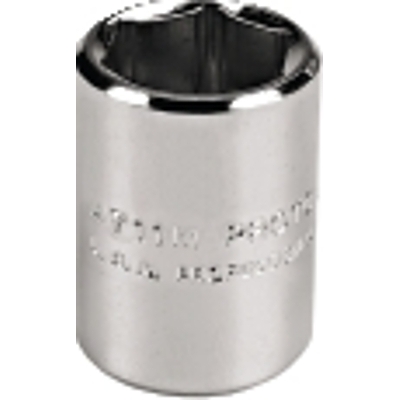

PROTO Skt 1/4 Dr 9Mm 12 Pt
Specifications
| Socket Size (Metric) | 9 |
|---|---|
| Coating/Finish | Full Polish |
| Overall Length (Inch) | 7/8 |
| No. Of Points | 12 |
| Drive Size (Inch) | 1/4 |
| Unit Of Measure | Metric |
| Drive Size | 1/4 in |
| Length Type | Standard |
| Bolt Clearance Depth (Fractional) | 35/64 |
| Drive End Outside Diameter (Fractional) | 33/64 |
| Nut Depth (Fractional) | 23/64 |
| Nut End Outside Diameter (Fractional) | 33/64 |
| Mouth Width (Fractional) | 23/64 |
| Nose Width (Fractional) | 33/64 |
| Standard | AS954E S3.8.1, ASME B107.110-2012 |
| Base Item Number | SOCKET |
| GTIN | 00662679141950 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| UNSPSC | 27111704 |
