PROTO
J5217

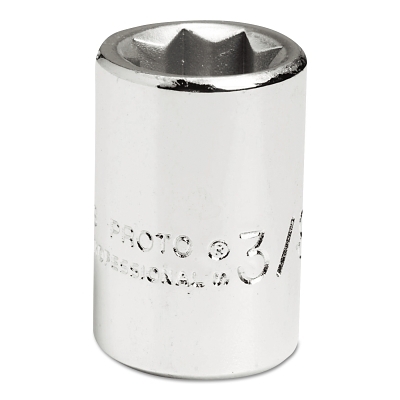

PROTO Skt 3/8Dr 17/32 12Pt
Specifications
| Socket Size (Inch) | 17/32 |
|---|---|
| Coating/Finish | Full Polish |
| Overall Length (Inch) | 1-1/8 |
| No. Of Points | 12 |
| Drive Size (Inch) | 3/8 |
| Unit Of Measure | Fractional |
| Drive Size | 3/8 in |
| Length Type | Standard |
| Bolt Clearance Depth (Fractional) | 11/16 |
| Drive End Outside Diameter (Fractional) | 49/64 |
| Nut Depth (Fractional) | 23/64 |
| Nut End Outside Diameter (Fractional) | 49/64 |
| Mouth Width (Fractional) | 23/64 |
| Nose Width (Fractional) | 49/64 |
| Standard | AS954E S3.8.1, ASME B107.110-2012 |
| Base Item Number | SOCKET |
| GTIN | 00662679975715 |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
