PROTO
J7207M

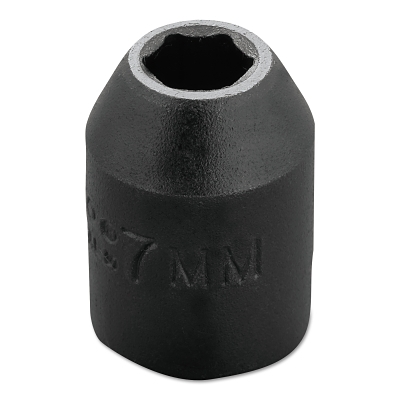

PROTO Skt Imp 3/8 Dr 7Mm 6 Pt
Specifications
| Socket Size (Metric) | 7 |
|---|---|
| Coating/Finish | Black Oxide |
| Type | Impact |
| Overall Length (Inch) | 59/64 |
| No. Of Points | 6 |
| Drive Size (Inch) | 3/8 |
| Short Description | PROTO SKT IMP 3/8 DR 7MM 6 PT |
| Long Description | PROTO SOCKETS: IMPACT 1.0 |
| Unit Of Measure | Metric |
| Length Type | Standard |
| Length (Fractional) | 23/25 |
| Bolt Clearance Depth (Fractional) | 27/64 |
| Drive End Outside Diameter (Fractional) | 11/16 |
| Nut Depth (Fractional) | 15/64 |
| Nut End Outside Diameter (Fractional) | 31/64 |
| Mouth Width (Fractional) | 15/64 |
| Nose Width (Fractional) | 31/64 |
| Outside Head Width (Fractional) | 59/64 |
| Standard | ASME B107.110-2012 |
| Base Item Number | SOCKETS: IMPACT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
