PROTO
J7224H

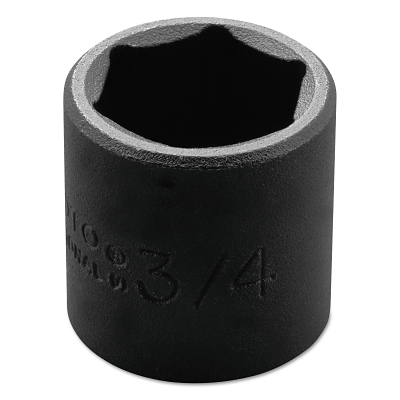

PROTO Skt Imp 3/8 Dr 3/4 6 Pt
Specifications
| Socket Size (Inch) | 3/4 |
|---|---|
| Coating/Finish | Black Oxide |
| Type | Impact |
| Overall Length (Inch) | 1-3/32 |
| No. Of Points | 6 |
| Drive Size (Inch) | 3/8 |
| Short Description | SKT IMP 3/8 DR 3/4 6 PT |
| Long Description | PROTO SOCKETS: IMPACT 1.1 |
| Unit Of Measure | Fractional |
| Drive Size | 3/8 in |
| Length Type | Standard |
| Bolt Clearance Depth (Fractional) | 19/32 |
| Drive End Outside Diameter (Fractional) | 1-1/16 |
| Nut Depth (Fractional) | 17/32 |
| Nut End Outside Diameter (Fractional) | 1-1/16 |
| Standard | ASME B107.110-2012 |
| Base Item Number | SOCKETS: IMPACT |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
| UNSPSC | 27112828 |
