PROTO
J7323M

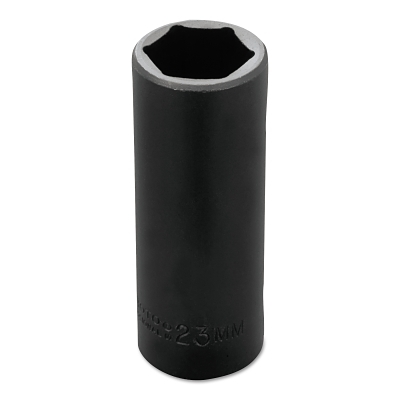

PROTO Skt Imp 1/2 Dr 23Mm 6 Pt
Specifications
| Socket Size (Metric) | 23 |
|---|---|
| Coating/Finish | Black Oxide |
| Type | Impact |
| Overall Length (Inch) | 3-1/2 |
| No. Of Points | 6 |
| Drive Size (Inch) | 1/2 |
| Short Description | PROTO SKT IMP 1/2 DR 23MM 6 PT |
| Long Description | PROTO SOCKETS: IMPACT 3.5 |
| Unit Of Measure | Metric |
| Length Type | Deep |
| Bolt Clearance Depth (Fractional) | 2-27/32 |
| Drive End Outside Diameter (Fractional) | 1-19/64 |
| Nut Depth (Fractional) | 1-13/32 |
| Nut End Outside Diameter (Fractional) | 1-19/64 |
| Nose Width (Fractional) | 1-19/64 |
| Standard | ASME B107.110-2012 |
| Base Item Number | SOCKETS: IMPACT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
