PROTO
J7330HT

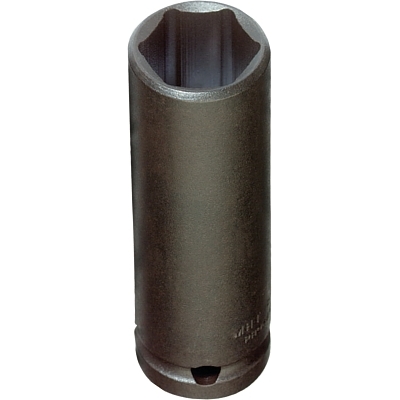

PROTO 1/2 Dr Deep Thin Wall Impact 1
Specifications
| Socket Size (Inch) | 15/16 |
|---|---|
| Coating/Finish | Black Oxide |
| Type | Impact |
| Overall Length (Inch) | 3-1/2 |
| No. Of Points | 6 |
| Drive Size (Inch) | 1/2 |
| Short Description | PROTO 1/2 DR DEEP THIN WALL IMPACT 1 |
| Long Description | PROTO SOCKETS: DEEP THIN WALL 3.5 |
| Unit Of Measure | Fractional |
| Length Type | Deep |
| Bolt Clearance Depth (Fractional) | 1-7/16 |
| Drive End Outside Diameter (Fractional) | 1-17/64 |
| Nut Depth (Fractional) | 1-13/32 |
| Nut End Outside Diameter (Fractional) | 1-17/64 |
| Nose Width (Fractional) | 1-17/64 |
| Standard | ASME B107.110-2012 |
| Base Item Number | SOCKETS: DEEP THIN WALL |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
