PROTO
J7446H

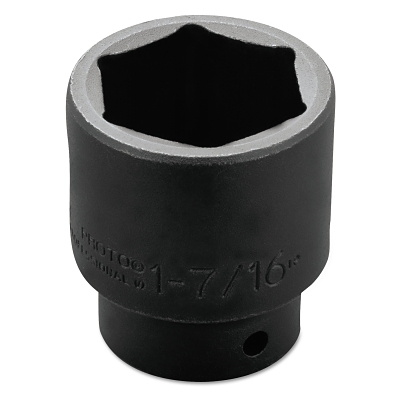

PROTO Skt Imp 1/2 Dr 1-7/16 6 P
Specifications
| Socket Size (Inch) | 1-7/16 |
|---|---|
| Coating/Finish | Black Oxide |
| Type | Impact |
| Overall Length (Inch) | 2-15/64 |
| No. Of Points | 6 |
| Drive Size (Inch) | 1/2 |
| Short Description | PROTO SKT IMP 1/2 DR 1-7/16 6 P |
| Long Description | PROTO SOCKETS: IMPACT 2.2 |
| Unit Of Measure | Fractional |
| Length Type | Standard |
| Bolt Clearance Depth (Fractional) | 1-37/64 |
| Drive End Outside Diameter (Fractional) | 1-5/8 |
| Nut Depth (Fractional) | 1 |
| Nut End Outside Diameter (Fractional) | 1-59/64 |
| Nose Width (Fractional) | 1-59/64 |
| Outside Head Width (Fractional) | 2-15/64 |
| Standard | ASME B107.110-2012 |
| Base Item Number | SOCKETS: IMPACT |
| Product Type | Industrial Supplies |
| Unit of Measure | Fractional |
