RobbJack
B-330-04-C

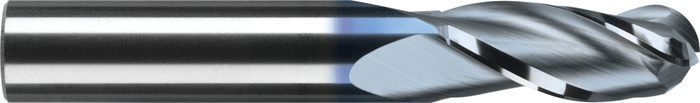

B-330-04-C B Series Tuffy Grade Carbide End Mill
Specifications
| Coating/Finish | TiCN |
|---|---|
| Overall Length (Inch) | 1.5 |
| Length Of Cut (Inch) | 0.5 |
| Type | High Performance |
| Shank Size (Inch) | 0.13 |
| Material | Carbide |
| Number Of Flutes | 3 |
| Diameter (Inch) | 0.13 |
| Unit Of Measure | Imperial |
| Short Description | 0.125-in Dia 3-Flute End Mill, 0.5-in LOC, 0.125-in Shank, 1.5-in OAL, 0.0625-in CR |
| Shank Diameter | 0.125 |
| Overall Length | 1.5 |
| Series | B |
| Flute Length | 0.5 |
| Corner Chamfer (Decimal) | 0.07 |
| Cutting Diameter | 0.125 |
| Base Item Number | B |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Bullet 3 | Conventional |
| GTIN | 662966202036 |
| Measurement System | in |
| Bullet 1 | T-Process Hone |
| Bullet 2 | 3-D |
