RobbJack
FM-301-20-120

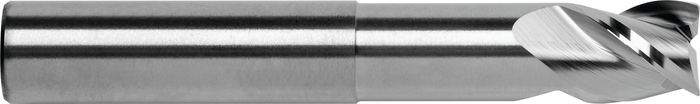

FM-301-20-120 FM Series High Performance Carbide End Mill
Specifications
| Length Of Cut (Inch) | 0.63 |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.12 |
| Overall Length (Inch) | 6 |
| Type | High Performance |
| Coating/Finish | Uncoat |
| Number Of Flutes | 3 |
| Unit Of Measure | Imperial |
| Neck Diameter | 0.59375 |
| Neck Diameter (Decimal) | 0.60 |
| Short Description | 0.625-in Dia 3-Flute End Mill, 0.625-in LOC, 0.625-in Shank, 6-in OAL, 0.12-in CR, 1.5-in Reach |
| Diameter | 0.63 Inch |
| Shank Size | 0.63 Inch |
| Overall Length | 6 |
| Series | FM |
| Flute Length | 0.625 |
| Cutting Diameter | 0.625 |
| Reach Length (Decimal) | 1.5 |
| Base Item Number | FM |
| Neck Diameter (Inch) | 0.6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Diameter | 0.625 |
| Bullet 3 | Necked |
| Reach Length | 1.5 |
| GTIN | 662966652336 |
| Measurement System | in |
| Bullet 1 | Feather Blend |
| Bullet 2 | Mirror Edge |
