RobbJack
FM-305-10-030-DLC

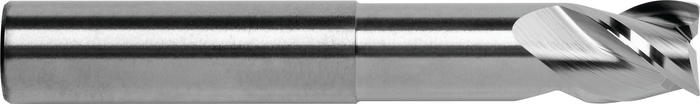

FM-305-10-030-DLC FM Series High Performance Carbide End Mill
Specifications
| Length Of Cut (Inch) | 0.32 |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 3.13 |
| Type | High Performance |
| Coating/Finish | DLC |
| Number Of Flutes | 3 |
| Unit Of Measure | Imperial |
| Neck Diameter | 0.296875 |
| Neck Diameter (Decimal) | 0.30 |
| Short Description | 0.3125-in Dia 3-Flute End Mill, 0.3125-in LOC, 0.3125-in Shank, 3.125-in OAL, 0.03-in CR, 1.625-in Reach |
| Diameter | 0.32 Inch |
| Shank Size | 0.32 Inch |
| Overall Length | 3.125 |
| Series | FM |
| Flute Length | 0.3125 |
| Cutting Diameter | 0.3125 |
| Reach Length (Decimal) | 1.63 |
| Base Item Number | FM |
| Neck Diameter (Inch) | 0.3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Diameter | 0.3125 |
| Bullet 3 | Necked |
| Reach Length | 1.625 |
| GTIN | 662966654934 |
| Measurement System | in |
| Bullet 1 | Feather Blend |
| Bullet 2 | Mirror Edge |
