RobbJack
FMHV-301-32-TC

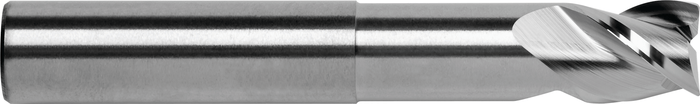

FMHV-301-32-TC FMHV Series High Velocity Solid Carbide End Mill for Aluminum
Specifications
| Shank Size (Inch) | 1 |
|---|---|
| Type | High Performance |
| Overall Length (Inch) | 4 |
| Length Of Cut (Inch) | 1.25 |
| Number Of Flutes | 3 |
| Material | Carbide |
| Coating/Finish | Uncoat |
| Diameter (Inch) | 1 |
| Unit Of Measure | Imperial |
| Neck Diameter (Decimal) | 0.95 |
| Short Description | 1-in Dia 3-Flute End Mill, 1.25-in LOC, 1-in Shank, 4-in OAL, 2.125-in Reach, Thru Coolant Holes |
| Cutting Diameter | 1 |
| Shank Diameter | 1 |
| Overall Length | 4 |
| Series | FMHV |
| Flute Length | 1.25 |
| GTIN | 662966902240 |
| Reach Length (Decimal) | 2.13 |
| Base Item Number | FMHV |
| Neck Diameter (Inch) | 0.95 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Bullet 3 | Necked |
| Reach Length | 2.125 |
| Neck Diameter | 0.95 |
| Measurement System | in |
| Bullet 1 | Feather Blend |
| Bullet 2 | Mirror Edge |
