RobbJack
FMHV-303-20-TC-CB

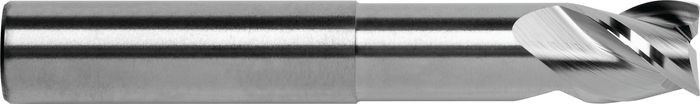

FMHV-303-20-TC-CB FMHV Series High Velocity Solid Carbide End Mill for Aluminum
Specifications
| Shank Size (Inch) | 0.63 |
|---|---|
| Type | High Performance |
| Overall Length (Inch) | 4.5 |
| Length Of Cut (Inch) | 0.88 |
| Number Of Flutes | 3 |
| Material | Carbide |
| Coating/Finish | Uncoat |
| Diameter (Inch) | 0.63 |
| Unit Of Measure | Imperial |
| Neck Diameter (Decimal) | 0.60 |
| Short Description | 0.625-in Dia 3-Flute End Mill, 0.875-in LOC, 0.625-in Shank, 4.5-in OAL, 2.563-in Reach, Thru Coolant Holes, with Chip Breakers |
| Cutting Diameter | 0.625 |
| Shank Diameter | 0.625 |
| Overall Length | 4.5 |
| Series | FMHV |
| Flute Length | 0.875 |
| GTIN | 662966992814 |
| Reach Length (Decimal) | 2.57 |
| Base Item Number | FMHV |
| Neck Diameter (Inch) | 0.6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Bullet 3 | Necked |
| Reach Length | 2.563 |
| Neck Diameter | 0.59375 |
| Measurement System | in |
| Bullet 1 | Feather Blend |
| Bullet 2 | Mirror Edge |
