M20-0050-05-20

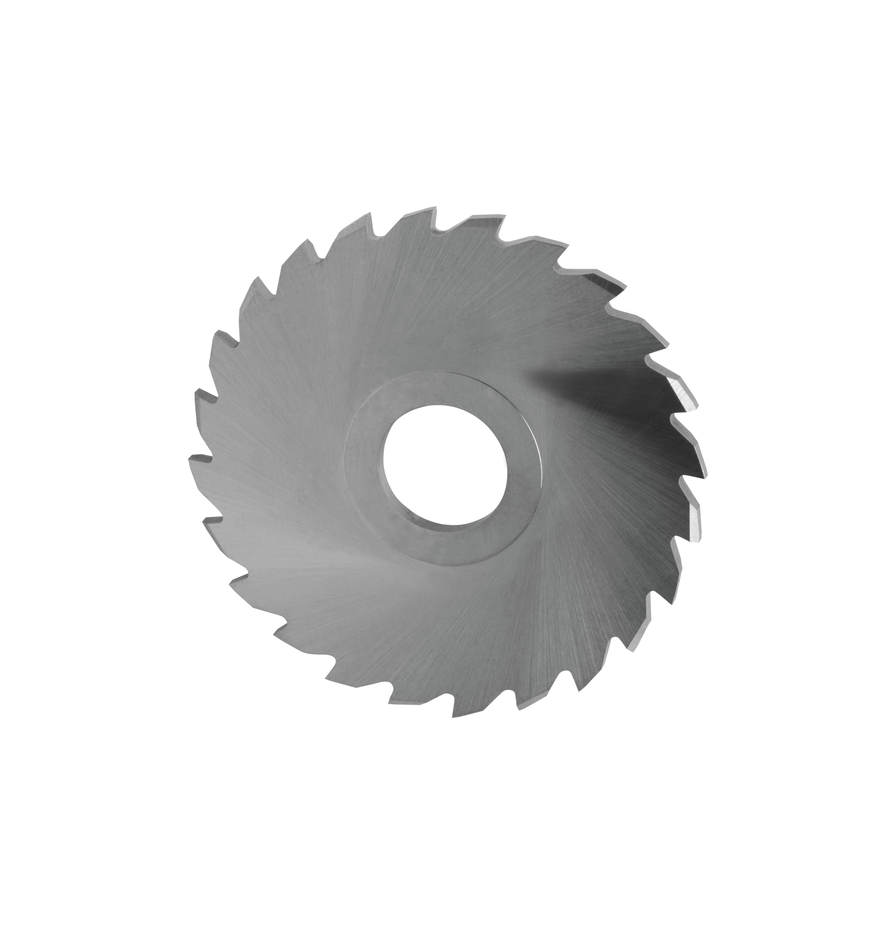

M20-0050-05-20 M20 Series 20mm Diameter Solid Carbide Saw
Specifications
| Long Description | Our precision ground 20mm diameter solid carbide saws are best used for tougher materials like steel, stainless, and super alloys. They have 20 teeth with a 5 degree rake angle, and a 5mm inside diameter. The saws are ground with ultra-precision tolerances, with thickness held to +.0002"/-0.0000". Typical depth of cut per pass is about 2 times the saw thickness. If the total depth of cut is more than 5 times the saw thickness or you need to have a slitting saw with the highest performance see the <a href="https://robbjack.com/tools/?type=saw&chars_feat=fine&tool_line=M20">MK20-05-20</a> series saw. The recommended maximum total depth of cut with a M20-05-20 using an <a href="https://robbjack.com/tools/tool-detail/?tool_name=MSA-05">MSA-05</a> saw arbor is 0.107". |
|---|---|
| Short Description | 20mm Diam. Slitting Saw, 0.05mm Thick, 5mm ID, 20 teeth |
| Arbor Diameter | 5 |
| Tooth Count | 20 |
| GTIN | 662966661093 |
| Outside Diameter | 0.787402 |
| Coating | UNCOAT |
| Measurement System | mm |
| Bullet 1 | Fine Tooth |
