RobbJack
M32-0200-08-16

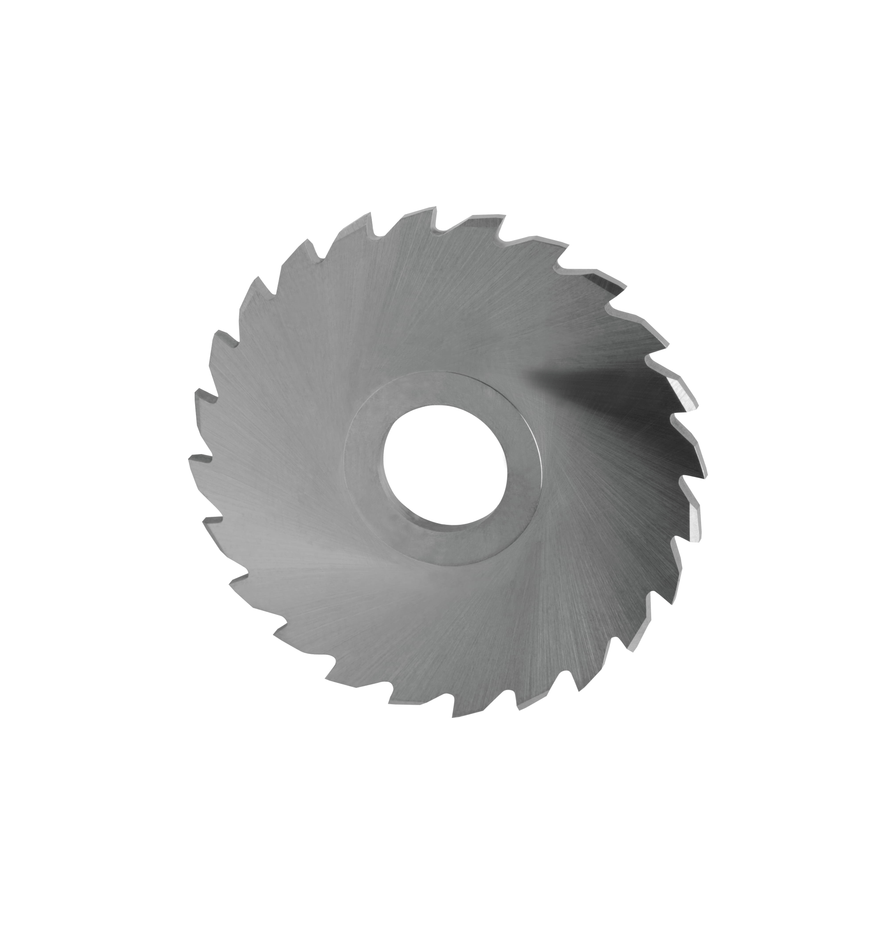

M32-0200-08-16 M32 Series 32mm Diameter Solid Carbide Saw
Specifications
| Long Description | Our precision ground 32mm diameter solid carbide saws are best used for non-ferrous materials, such as aluminum, copper, and plastics. They have 16 teeth with a 10 degree rake angle, and a 8mm inside diameter. The saws are ground with ultra-precision tolerances, with thickness held to +.0002"/-0.0000". Typical depth of cut per pass is about 4 times the saw thickness. If the total depth of cut is more than 5 times the saw thickness or you need to have a slitting saw with the highest performance see the <a href="https://robbjack.com/tools/?type=saw&chars_feat=coarse&tool_line=M32">MK32-08-16</a> series saw. The recommended maximum total depth of cut with a M32-08-16 using an <a href="https://robbjack.com/tools/tool-detail/?tool_name=MSA-08">MSA-08</a> saw arbor is 0.265". |
|---|---|
| Short Description | 32mm Diam. Slitting Saw, 0.2mm Thick, 8mm ID, 16 teeth |
| Arbor Diameter | 8 |
| Tooth Count | 16 |
| GTIN | 662966602058 |
| Outside Diameter | 1.259843 |
| Coating | UNCOAT |
| Measurement System | mm |
| Bullet 1 | Coarse Tooth |
