RobbJack
M63-2000-16-56

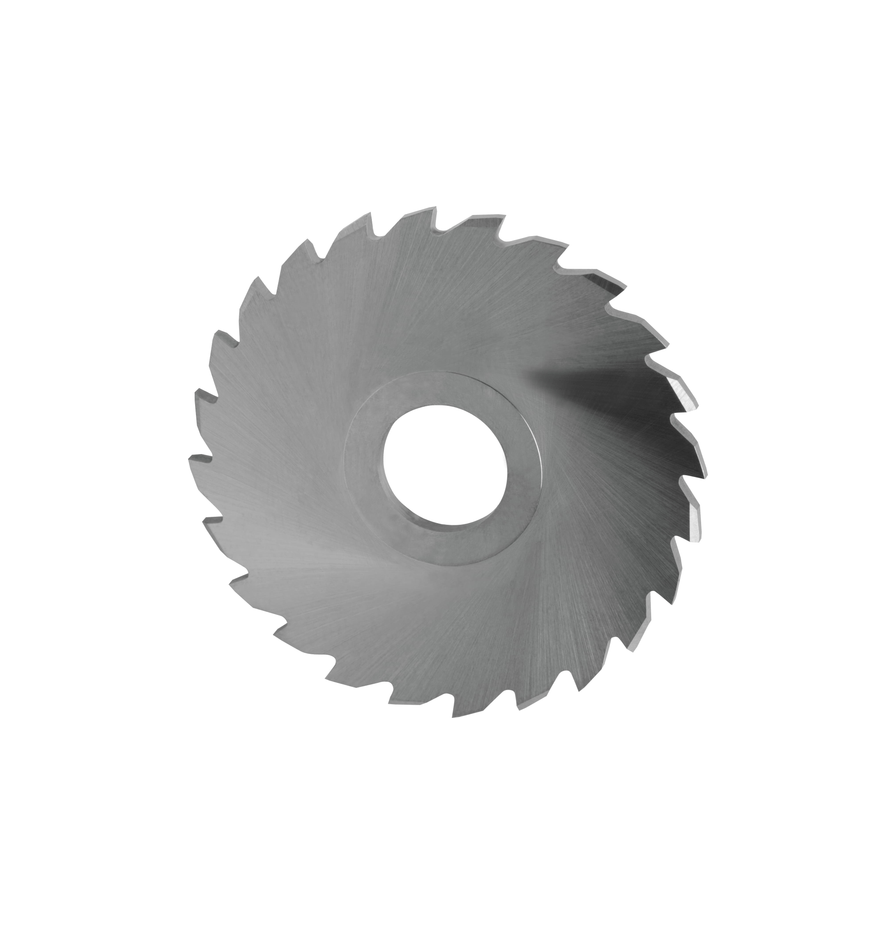

M63-2000-16-56 M63 Series 63mm Diameter Solid Carbide Saw
Specifications
| Long Description | Our precision ground 63mm diameter solid carbide saws are best used for tougher materials like steel, stainless, and super alloys. They have 56 teeth with a 5 degree rake angle, and a 16mm inside diameter. The saws are ground with ultra-precision tolerances, with thickness held to +.0002"/-0.0000". Typical depth of cut per pass is about 2 times the saw thickness. If the total depth of cut is more than 5 times the saw thickness or you need to have a slitting saw with the highest performance see the <a href="https://robbjack.com/tools/?type=saw&chars_feat=fine&tool_line=M63">MK63-16-56</a> series saw. The recommended maximum total depth of cut with a M63-16-56 using an <a href="https://robbjack.com/tools/tool-detail/?tool_name=MSA-16">MSA-16</a> saw arbor is 0.698". |
|---|---|
| Short Description | 63mm Diam. Slitting Saw, 2mm Thick, 16mm ID, 56 teeth |
| Arbor Diameter | 16 |
| Tooth Count | 56 |
| GTIN | 662966662274 |
| Outside Diameter | 2.480315 |
| Coating | UNCOAT |
| Measurement System | mm |
| Bullet 1 | Fine Tooth |
