RobbJack
M80-4000-22-30

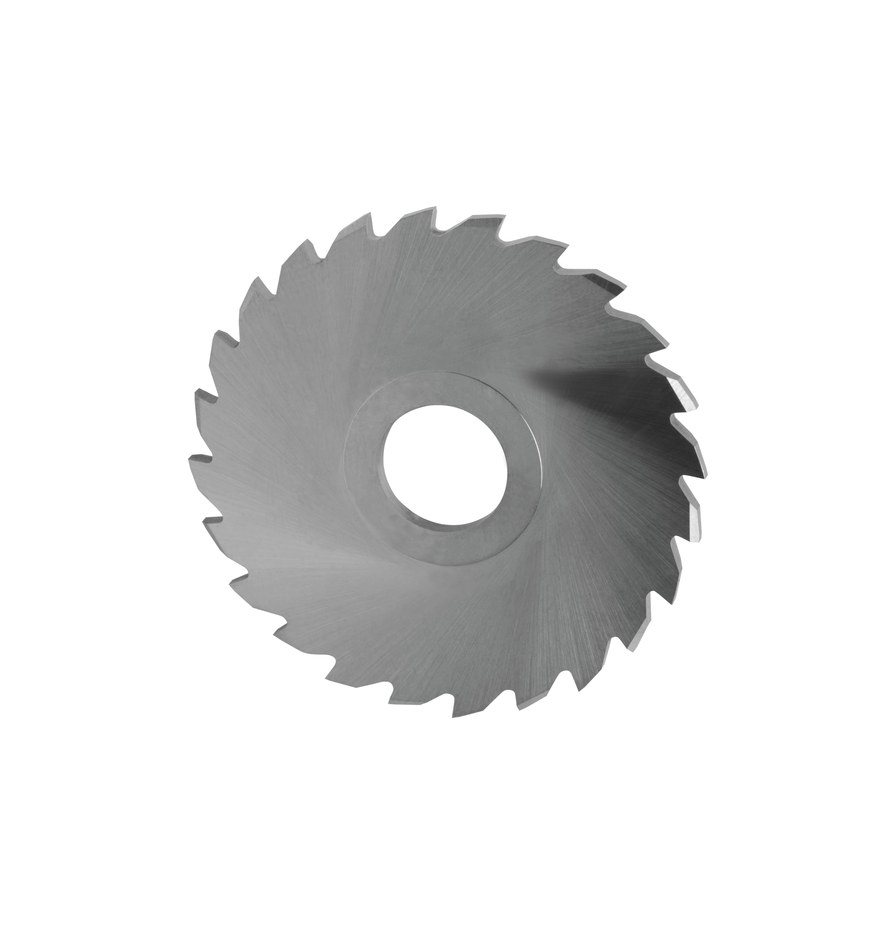

M80-4000-22-30 M80 Series 80mm Diameter Solid Carbide Saw
Specifications
| Long Description | Our precision ground 80mm diameter solid carbide saws are best used for non-ferrous materials, such as aluminum, copper, and plastics. They have 30 teeth with a 10 degree rake angle, and a 22mm inside diameter. The saws are ground with ultra-precision tolerances, with thickness held to +.0002"/-0.0000". Typical depth of cut per pass is about 4 times the saw thickness. If the total depth of cut is more than 5 times the saw thickness or you need to have a slitting saw with the highest performance see the <a href="https://robbjack.com/tools/?type=saw&chars_feat=coarse&tool_line=M80">MK80-22-30</a> series saw. The recommended maximum total depth of cut with a M80-22-30 using an <a href="https://robbjack.com/tools/tool-detail/?tool_name=MSA-22">MSA-22</a> saw arbor is 0.836". |
|---|---|
| Short Description | 80mm Diam. Slitting Saw, 4mm Thick, 22mm ID, 30 teeth |
| Arbor Diameter | 22 |
| Tooth Count | 30 |
| GTIN | 662966662564 |
| Outside Diameter | 3.149606 |
| Coating | UNCOAT |
| Measurement System | mm |
| Bullet 1 | Coarse Tooth |
