RobbJack
MFMHV-303-25-400-CB

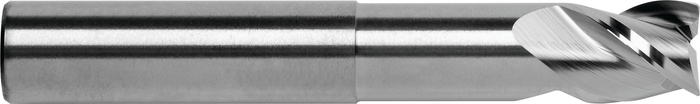

MFMHV-303-25-400-CB MFMHV Series Metric High Velocity Solid Carbide End Mill for Aluminum
Specifications
| Material | Carbide |
|---|---|
| Type | High Performance |
| Length Of Cut (Metric) | 32 |
| Overall Length (Metric) | 127 |
| Coating/Finish | Uncoat |
| Corner Radius (Metric) | 4 |
| Number Of Flutes | 3 |
| Unit Of Measure | Metric |
| Neck Diameter | 23.8 |
| Neck Diameter (Metric) | 23.8 |
| Short Description | 25mm Dia 3-Flute Metric End Mill, 32mm LOC, 25mm Shank, 127mm OAL, 4mm CR, 78mm Reach, with Chip Breakers |
| Diameter | 25 mm |
| Shank Size | 25 mm |
| Overall Length | 127 |
| Series | MFMHV |
| Flute Length | 32 |
| Cutting Diameter | 25 |
| Reach Length (Metric) | 78 |
| Base Item Number | MFMHV |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 25 |
| Bullet 3 | Necked |
| Reach Length | 78 |
| GTIN | 662966100004 |
| Measurement System | mm |
| Bullet 1 | Feather Blend |
| Bullet 2 | Mirror Edge |
