RobbJack
MFMHV-304-16-050-DLC-CB

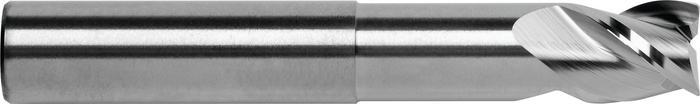

MFMHV-304-16-050-DLC-CB MFMHV Series Metric High Velocity Solid Carbide End Mill for Aluminum
Specifications
| Material | Carbide |
|---|---|
| Type | High Performance |
| Length Of Cut (Metric) | 22 |
| Overall Length (Metric) | 127 |
| Coating/Finish | DLC |
| Corner Radius (Metric) | 0.5 |
| Number Of Flutes | 3 |
| Unit Of Measure | Metric |
| Neck Diameter | 15.2 |
| Neck Diameter (Metric) | 15.2 |
| Short Description | 16mm Dia 3-Flute Metric End Mill, 22mm LOC, 16mm Shank, 127mm OAL, 0.5mm CR, 78mm Reach, with Chip Breakers |
| Diameter | 16 mm |
| Shank Size | 16 mm |
| Overall Length | 127 |
| Series | MFMHV |
| Flute Length | 22 |
| Cutting Diameter | 16 |
| Reach Length (Metric) | 78 |
| Base Item Number | MFMHV |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 16 |
| Bullet 3 | Necked |
| Reach Length | 78 |
| GTIN | 662966100004 |
| Measurement System | mm |
| Bullet 1 | Feather Blend |
| Bullet 2 | Mirror Edge |
