RobbJack
MK20-2500-05-10

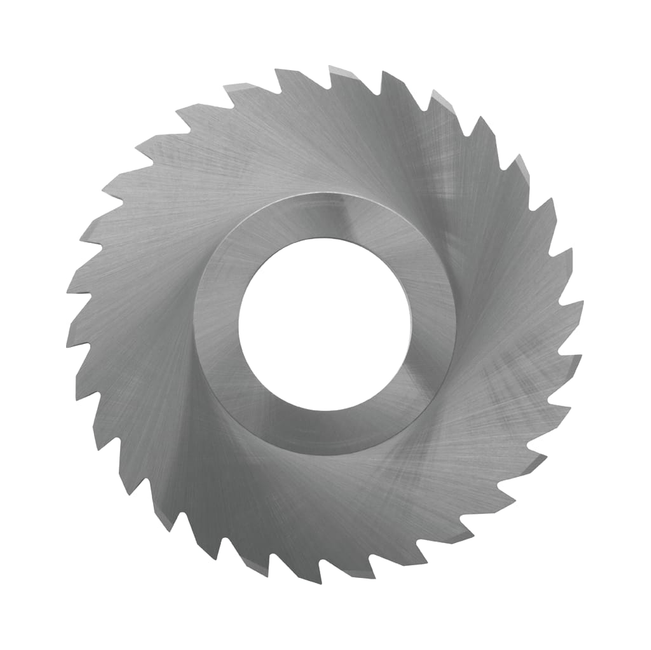

MK20-2500-05-10 M20 Series 20mm Diameter Solid Carbide Saw
Specifications
| Long Description | Our precision ground 20mm diameter solid carbide saws are best used for non-ferrous materials, such as aluminum, copper, and plastics.These specially designed saws remove more material and take deeper depth of cuts than any other saws we make. The saw has twice the side clearance (Double Concavity) than typical carbide saws, and have a standard staggered tooth design (Alternate Tooth Chamfer) to help keep chips from packing. The K-Series saw is the highest performance saw available, and comes standard with a flat and parallel hub the same thickness as the cutting thickness. They have 10 teeth with a 10 degree rake angle, and a 5mm inside diameter. The saws are ground with ultra-precision tolerances, with thickness held to +.0002"/-0.0000". Typical depth of cut per pass is about 4 times the saw thickness.The recommended maximum total depth of cut with a MK20-05-10 using an <a href="https://robbjack.com/tools/tool-detail/?tool_name=MSA-05">MSA-05</a> saw arbor is 0.107". |
|---|---|
| Short Description | 20mm Diam. Slitting Saw, 2.5mm Thick, 5mm ID, 10 teeth Alternate Tooth Chamfer, Double Concavity, 12mm Hub |
| Arbor Diameter | 5 |
| Tooth Count | 10 |
| Flange Diameter | 12 |
| GTIN | 662966053225 |
| Outside Diameter | 0.787402 |
| Coating | UNCOAT |
| Measurement System | mm |
| Bullet 1 | Coarse Tooth |
