RobbJack
MNS-403-16

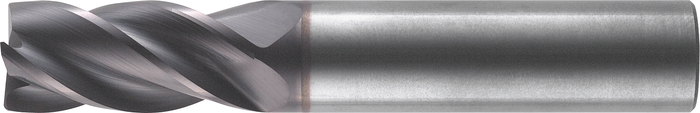

MNS-403-16 MNS Series Metric Solid carbide End Mill for Steels and Cast Iron
Specifications
| Material | Carbide |
|---|---|
| Type | High Performance |
| Length Of Cut (Metric) | 48 |
| Overall Length (Metric) | 110 |
| Coating/Finish | Uncoat |
| Corner Radius (Metric) | 0.4 |
| Number Of Flutes | 4 |
| Unit Of Measure | Metric |
| Short Description | 16mm Dia 4-Flute Metric End Mill Square End Mill 48mm LOC, 16mm Shank, 110mm OAL, 0.350013mm Chamfer with Weldon Flats |
| Diameter | 16 mm |
| Shank Size | 16 mm |
| Overall Length | 110 |
| Series | MNS |
| Flute Length | 48 |
| Cutting Diameter | 16 |
| Base Item Number | MNS |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Shank Diameter | 16 |
| Bullet 3 | Finishing |
| GTIN | 662966908082 |
| Measurement System | mm |
| Bullet 1 | Cold Air |
| Bullet 2 | Dry |
