RobbJack
NS-403-12-FL

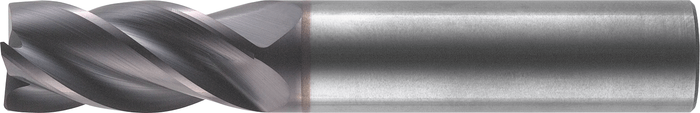

NS-403-12-FL NS Series Solid Carbide End Mill for Steels and Cast Iron
Specifications
| Length Of Cut (Inch) | 1.25 |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.01 |
| Overall Length (Inch) | 3 |
| Type | High Performance |
| Coating/Finish | AlTiN |
| Number Of Flutes | 4 |
| Unit Of Measure | Imperial |
| Short Description | 0.375-in Dia 4-Flute End Mill, 1.25-in LOC, 0.375-in Shank, 3-in OAL, 0.01-in Chamfer with Weldon Flats |
| Diameter | 0.38 Inch |
| Shank Size | 0.38 Inch |
| Overall Length | 3 |
| Series | NS |
| Flute Length | 1.25 |
| Cutting Diameter | 0.375 |
| Base Item Number | NS |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Diameter | 0.375 |
| Bullet 3 | Finishing |
| GTIN | 662966063637 |
| Measurement System | in |
| Bullet 1 | Cold Air |
| Bullet 2 | Dry |
