RobbJack
SB-301-08

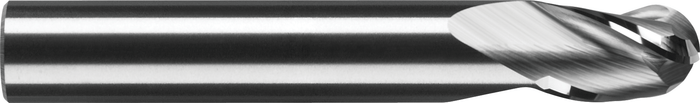

SB-301-08 SB Series Tuffy Grade Carbide End Mill
Specifications
| Coating/Finish | Uncoat |
|---|---|
| Overall Length (Inch) | 2.5 |
| Length Of Cut (Inch) | 0.32 |
| Type | High Performance |
| Shank Size (Inch) | 0.25 |
| Material | Carbide |
| Number Of Flutes | 3 |
| Diameter (Inch) | 0.25 |
| Unit Of Measure | Imperial |
| Short Description | 0.25-in Dia 3-Flute End Mill, 0.3125-in LOC, 0.25-in Shank, 2.5-in OAL, 0.125-in CR |
| Shank Diameter | 0.25 |
| Overall Length | 2.5 |
| Series | SB |
| Flute Length | 0.3125 |
| Corner Chamfer (Decimal) | 0.13 |
| Cutting Diameter | 0.25 |
| Base Item Number | SB |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Bullet 3 | Finishing |
| GTIN | 662966227077 |
| Measurement System | in |
| Bullet 1 | 3-D |
| Bullet 2 | Conventional |
