RobbJack
XF-802-32-120

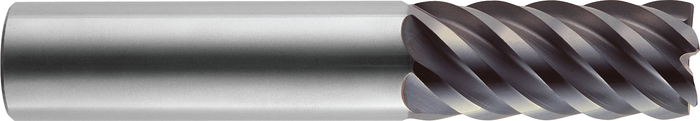

XF-802-32-120 XF Series Tuffy Grade Carbide End Mill
Specifications
| Length Of Cut (Inch) | 2 |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.12 |
| Overall Length (Inch) | 5 |
| Type | High Performance |
| Coating/Finish | AlTiN |
| Number Of Flutes | 8 |
| Unit Of Measure | Imperial |
| Short Description | 1-in Dia 8-Flute End Mill, 2-in LOC, 1-in Shank, 5-in OAL, 0.12-in CR with Weldon Flats |
| Diameter | 1 Inch |
| Shank Size | 1 Inch |
| Overall Length | 5 |
| Series | XF |
| Flute Length | 2 |
| Cutting Diameter | 1 |
| Base Item Number | XF |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Diameter | 1 |
| Bullet 3 | Finishing |
| GTIN | 662966870945 |
| Measurement System | in |
| Bullet 1 | Cold Air |
| Bullet 2 | Dry |
