RobbJack
XG-400-20

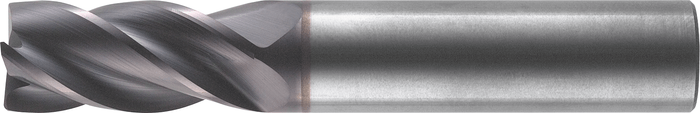

XG-400-20 XG Series Tuffy Grade Carbide End Mill
Specifications
| Length Of Cut (Inch) | 0.75 |
|---|---|
| Material | Carbide |
| Corner Radius (Inch) | 0.03 |
| Overall Length (Inch) | 3.5 |
| Type | High Performance |
| Coating/Finish | AlTiN |
| Number Of Flutes | 4 |
| Unit Of Measure | Imperial |
| Short Description | 0.625-in Dia 4-Flute End Mill, 0.75-in LOC, 0.625-in Shank, 3.5-in OAL, 0.027-in CR with Weldon Flats |
| Diameter | 0.63 Inch |
| Shank Size | 0.63 Inch |
| Overall Length | 3.5 |
| Series | XG |
| Flute Length | 0.75 |
| Cutting Diameter | 0.625 |
| Base Item Number | XG |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Shank Diameter | 0.625 |
| Bullet 3 | Finishing |
| GTIN | 662966871065 |
| Measurement System | in |
| Bullet 1 | Cold Air |
| Bullet 2 | Dry |
